4hp cd4000 series based logic

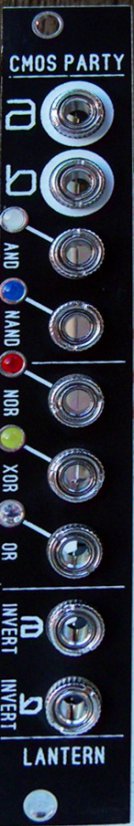

MODEL: EURO FORMAT CMOS PARTY BOOLEAN LOGIC MODULE

SPECS:

4HP WIDE
DEPTH: 1.6 inches
Current: +23mA, -5mA

This is a boolean logic module with all the possible outputs: AND, NAND, NOR, XOR, OR. All possible boolean combinations were made for you. All you have to do is patch a square wave or clock into A, and another one into B. Then just try out all the flavors and patch an output into a sequencer for example to see the clock timing become interesting. There are far more uses for this also. This is a great 'I remember my first logic module...'

There is also inverted logic for each A and B output.
This module is using CD4000 logic IC chips to do it's magic. This module really has no latency and can go audio rate.

• 23 mA +12V
• 5 mA -12V
• 40 mm deep
