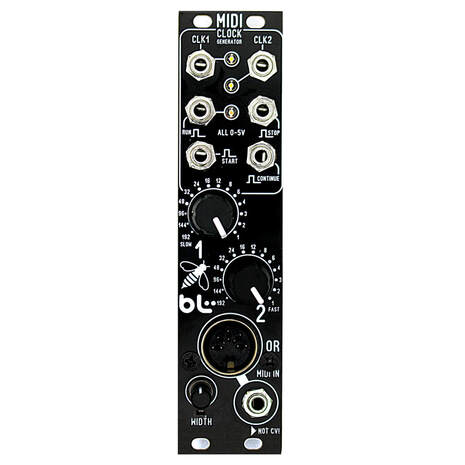

BLUE LANTERN MIDI TO PULSE CLOCK
BLUE LANTERN MIDI TO PULSE CLOCK
Regular price$9500
$95.00
/
- Free shipping over $99 to most states
- Easy returns
- Secure payments
- In Stock
Model: BLM MIDI to Pulse
Width: 6hp
Current: +5mA, -0v Not Applicable
What does this do?
The particular module allows the user to plug in a standard Midi DIN patch cable from an external
Midi clock generating device, and generates a clock signal, a start and stop pulse, Run Hi gate, and
continuous pulse outputs. In simple terms you can connect a groove box for example and this product
will generator clock for your modular. You can sync analog sequencers, grids module, clock dividers, etc.
-Each clock can be set for rates between 1 clock pulse per 4
bars to 12 clock pulses per quarter note. Clock outputs are 0-5V.
-Two independent 0-5V clock outputs at select-able sub multiples of the 24ppqn rate of Midi Clock.
-Start out is a pulse event.
-Stop out is a pulse event.
-Run out is a Gate held high while the clock is running.
-Continue out is a pulse event. Needs a Midi Continue message to use this feature.
-3 LED's give visual feedback.
Output pulse for these events can be adjusted 256us and 65.5ms using the PULSE LENGTH
knob.
MIDI System Reset messages will reset all clock counters and clear all chip outputs.
