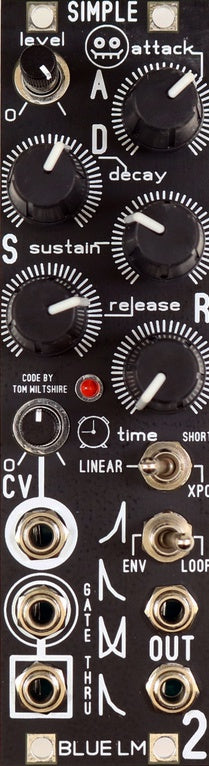

MODEL: EURO 7HP SIMPLE DIGITAL ADSR v2
Envelope Generator
Width: 7HP
DEPTH: 1.5 inches
CURRENT: +18mA , -8mA

This module is an envelope generator. It offers Attack, Decay, Sustain, Release, and a 'time' knob to alter the length of the stage or 'loop'.
You use this module to control other modules, for example: VCA's, VCO's pitch, Filter's. When in loop mode, the output is audible.

Control Knobs: Attack, Decay, Sustain, Release, Time.

Switches; Linear or Exponential mode. There is also a switch for Normal one pass, Gated mode, or Loop mode. Gated mode is like loop mode but it will only cycle with a gate signal patched up.

Outputs: (2) simultaneous envelope outs.
Inputs: (1) Gate or Trigger input, there is a passive thru jack for you to keep daisy chaining the gate patch to other envelope generator, (1) CV input with level CV knob to voltage control the envelope output level.
