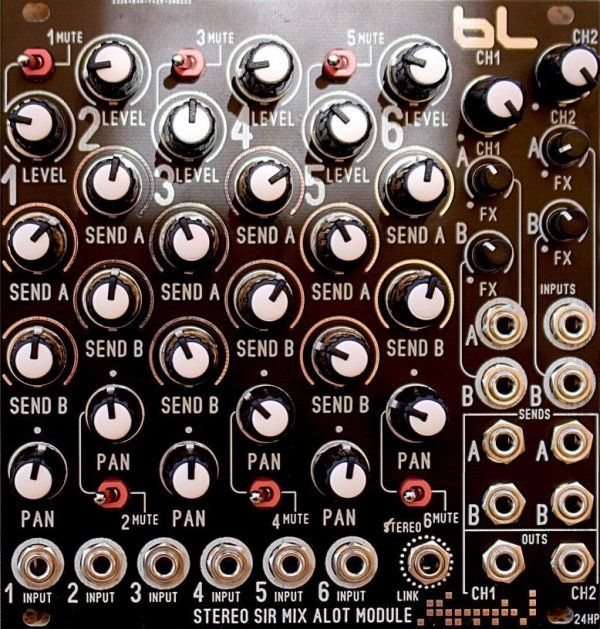

Stereo Synth Level Mixer

Current: +37mA, -37mA
Width: 24hp
Depth 1.5", PCB Stack Level: 1

Channels: 6, with panning on each channel.
Input gain: x10, synth level optimized.
Output: synth level optimized. Since there are master level knobs, one can attenuate for line levels.

Link ability: Yes, with 3.5mm stereo Y-cable. There is a jack labeled 'Stereo Link' where you can patch left and right synth level input signals.

What does this module do?
This module allows you to connect 6 channels of synth level Euro Format signals (-5/+5v) from your VCOs or percussion modules. You then can pan left or right like normal desktop mixers. The final mixdown outputs are also synth level (-5/+5v). There are two send and returns which are also synth level (-5/+5v). There is no CV control of any kind. This is a basic stereo audio mixer.
