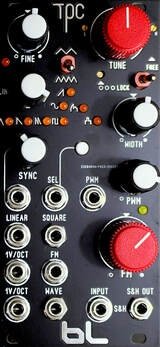

BLUE LANTERN TPC SLIM VCO
BLUE LANTERN TPC SLIM VCO
Regular price$28900
$289.00
/
- Free shipping over $99 to most states
- Easy returns
- Secure payments
- In Stock
WIDTH: 12HP
CURRENT: TBA
DEPTH: 1.5" Clearance, 1.3" min.
Discrete Triangle Core VCO
What does this do?
This is an analog VCO based on the Bergfotron Advanced VCO. It has heavy modification compared to other Buchla VCOs. It will track much better then the competition. Why? because this is using a VCA based tracking system instead of the matched transistor system. The 'Lock' switch allows for setting up your favorite reference Frequency. For example you can set it up on Zero Volts equals low Note 'C'.
You use this as a sound source.
You use this as a precision LFO.
You get a bonus analog sample and hold.
There are two possible sound source outputs:
-Wave Out. This has 8 possible wave shapes: Triangle, Saw, Double Saw, Pulse Width, Sine, Ramp, Even Harmonics, and Double Pulse wave. All of this is selected by push button. The selector circuit is using a Precision DG412 IC chip, so there is absolutely no bleeding. There is a Coarse CV input for the selector (by Triggering).
-(Positive) Static Square Wave Out. This is a great clock source, it is also a great sync source for other products.
The analog sample and hold is using the internal VCO as the 'clock'. You simply patch a sound source on the 'input' and use the output to monitor the result. The (red knob) Tune knob above is used to control the S&H rate.
This product is the evolution of the 'Transistor Pyramid Core' saga. This product has all the research and development I spent working with Analog VCOs.
