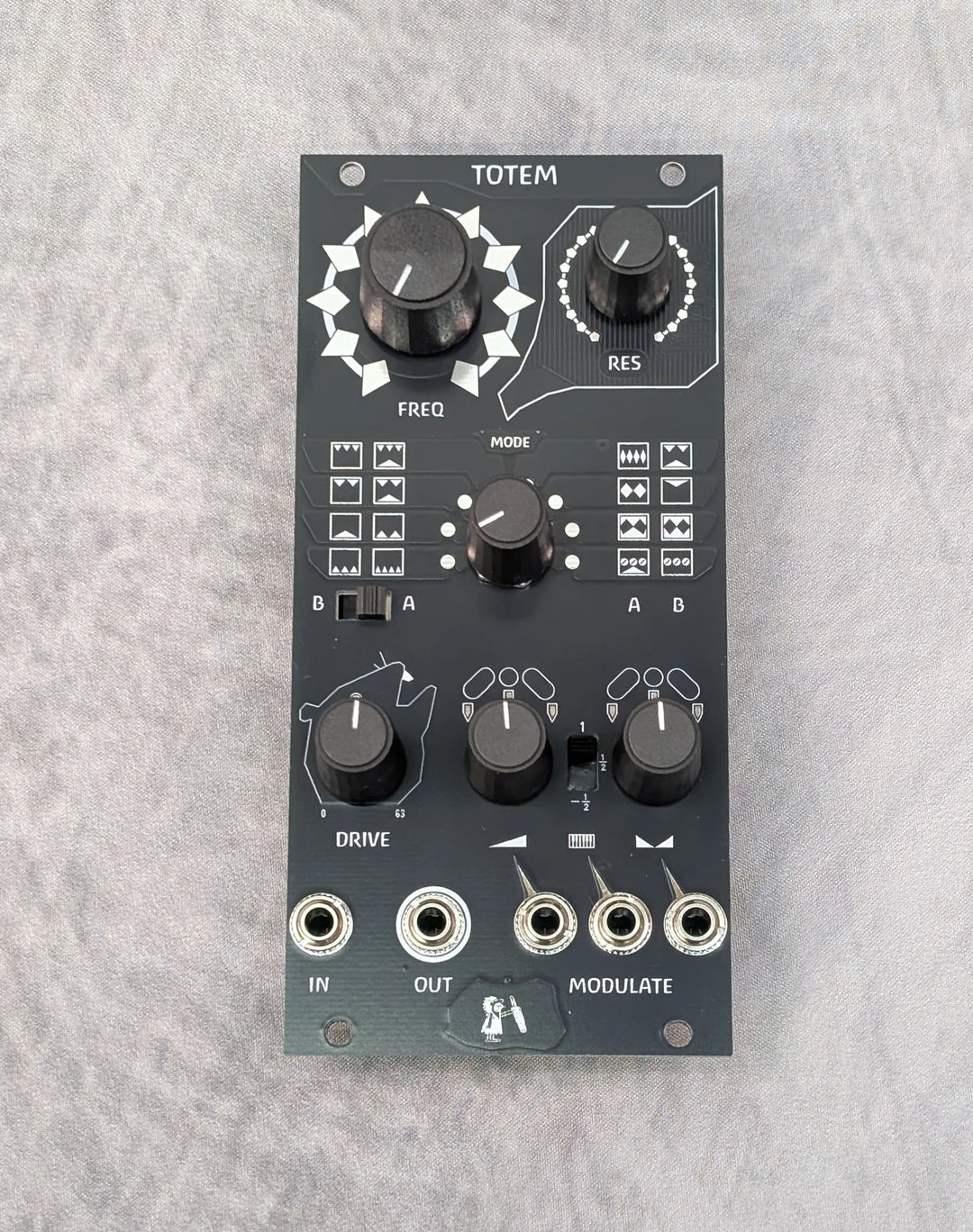

Totem is a multimode voltage controlled filter with 16 different filter modes based on the 3109 OTA chip used in classic synths like the Roland SH-101, MC-202, Jupiter-8 and others.
Features:
- Massive drive control for endless tone variety
- CV control via attenuator
- CV control via attenuverter
- V/OCT control with half and negative half scaling
Filter Modes:
| Mode |
A |
B |
| 1 |
24dB LPF |
18dB LPF |
| 2 |
12dB LPF |
6dB LPF |
| 3 |
12dB HPF + 6dB LPF A |
12dB HPF |
| 4 |
18dB HPF + 6dB LPF |
18dB HPF |
| 5 |
24dB BPF |
12dB HPF + 6dB LPF B |
| 6 |
12dB BPF |
6dB HPF |
| 7 |
12dB Notch + 6dB LPF |
12dB Notch |
| 8 |
18dB Allpass (phase) + 6dB LPF |
18dB Allpass (phase) |
Specifications
• Width: 12HP
• Depth: 25 mm
• Current Draw: +12 V: 20mA, -12 V: 10 mA
