Regular price$65000 $650.00
- Free shipping over $99
- Easy returns
- Secure payments
- In Stock
NEW WEBSITE! HIT US UP FOR AN EXISTING ACCOUNT ACTIVATION!
NEW WEBSITE! HIT US UP FOR A PREVIOUS ACCOUNT ACTIVATION!

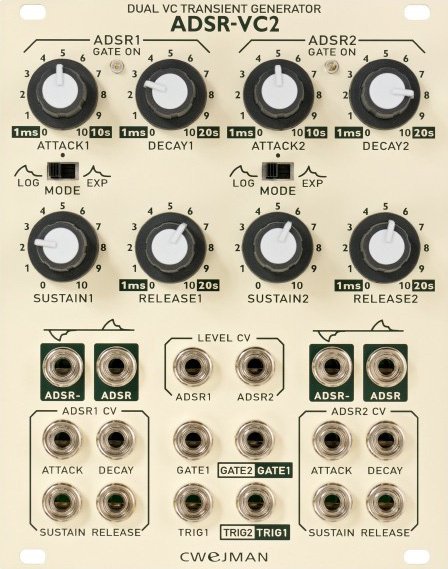

Both envelope generators are identical and provide control voltages that can be used for dynamic change of all voltage controlled parameters, such as; frequency, amplitude, pulse width, cutoff. The most common use is controlling a filters cutoff frequency and a voltage controlled amplifiers amplitude in order to achieve dynamic timbre- and level-changes. All parameters such as attack time, decay time, sustain level, release time and output level are voltage controlled.
GATE dip-switch; switches the Gates to an internal gate bus (Doepfer style frames). 5/8 dip-switch; sets ADSR1&2 output levels to 5 or 8 Volts. The 5 Volts output level is preferable for controlling of other Cwejman modules.
Current consumption: 30 mA
Dimensions: 128.4 mm (H), 101 mm (B); 3 HE, 20 TE
Occupies 20 HP of space in a Eurorack frame
