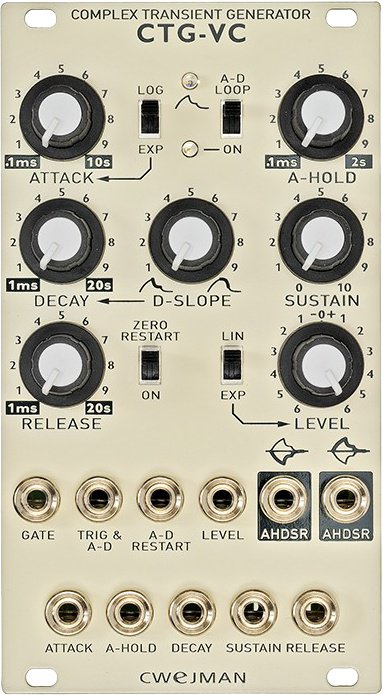

The CTG-VC provide control voltages that can be used for dynamic change of all voltage controlled parameters, such as; frequency, amplitude, pulse width, cutoff. The most common use is controlling filters cutoff frequency and a voltage controlled amplifiers amplitude in order to achieve dynamic timbre- and level-changes. All parameters such as attack time, attack hold time, decay time, sustain level, release time and output level are voltage controlled. The CTG-VC is a complex transient generator with a lot of features, such as; two different shapes for the attack, attack hold (A-HOLD) for more punchier sound than a standard attack, variable decay slope (D-SLOPE) from natural exponential to heavy logarithmic, attack-decay loop (A-D LOOP) and polarized level for outgoing transient signals which means that both outputs levels are controllable in both directions (positive and negative).

• 14HP
• 70 mA +12V
• 70 mA -12V
• 0 mA 5V
