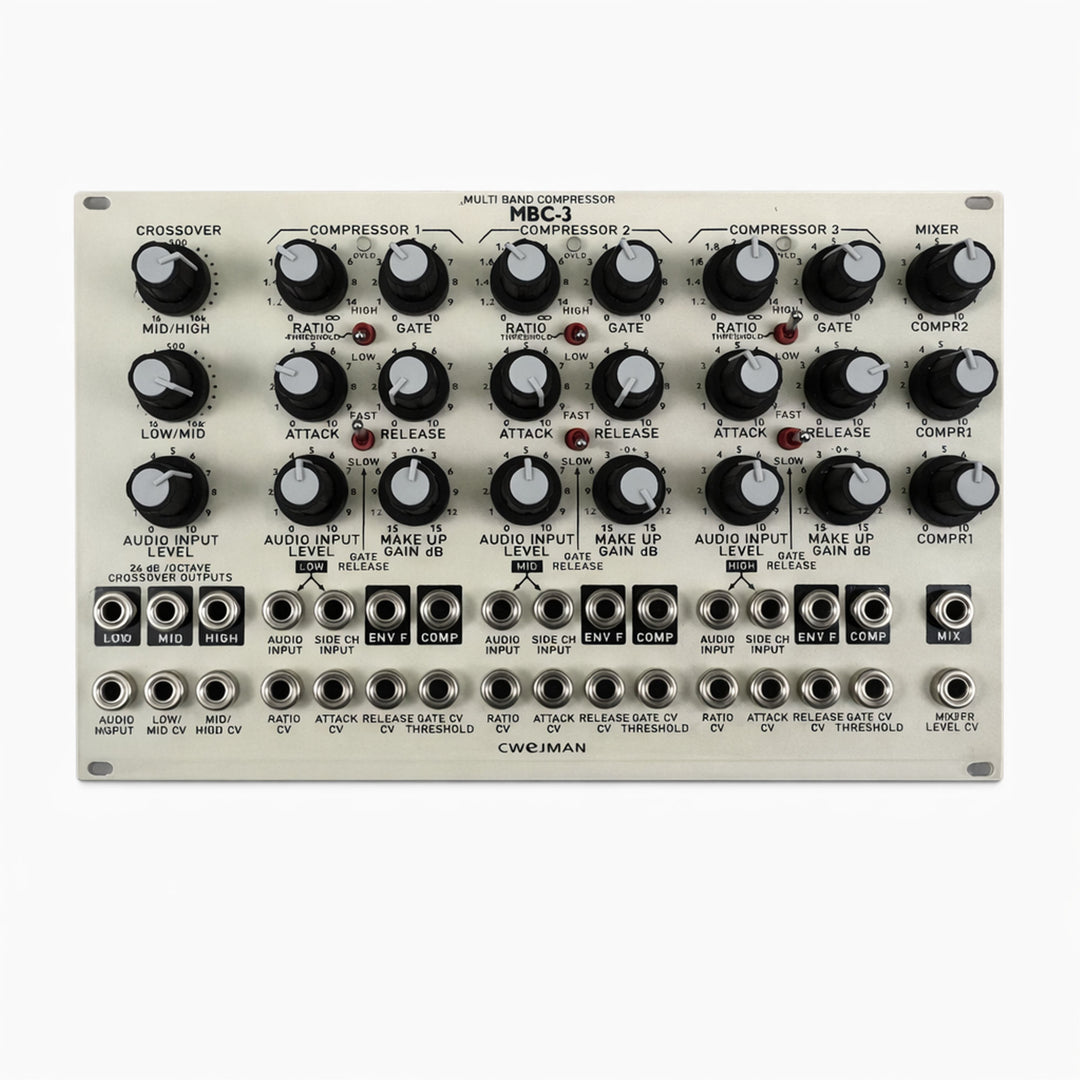

The MBC-3 contains a 3-way 24dB/octave crossover filter.
The crossover filter has 3 individual outputs for Low-Pass, Band-Pass and High-Pass
The crossovers are controlled manually and by CV external signals.
The crossover filter is followed by 3 pre-patched compressors to audio and side-chain inputs.
Functions such as compression, gate level, attack, release are CV controllable.
All compressor has an separate envelope follower (not affected by attack and release).
The outputs from the compressors are connected to the mixier with manual individual level controls.
The signal from the mixer is connected to outgoing VCA stage.

42hp
