CWEJMAN VCA-4MX

CWEJMAN VCA-4MX

CWEJMAN VCA-4MX

Regular price $599.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

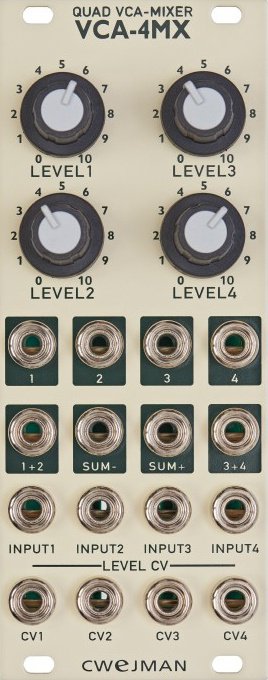

The VCA-4MX consists of four individual voltage controlled amplifiers. All amplifiers are identical and work in a semi-logarithmic mode. Amplifiers accept both DC and AC signals. the VCA-4MX has eight outputs for maximal flexibility; all amplifiers has an individual output, two summing outputs for all amplifiers (both normal and inverted) and additionally two summing outputs for VCA1 + VCA2 and VCA3 + VCA4.

The VCA-4MX can be used as a quad attenuator (using all four amplifiers separately), as a four input mixer (using summing outputs), and as two separate two-input mixers. All amplifiers have a dedicated level knob and CV inputs which control outgoing signals attenuation in semi-logarithmic mode. The level knob determines the maximal amount of controlled gain (or rather, voltage-controlled attenuation).

The semi-logarithmic transfer function is much more practical than a true logarithmic because it's "imitates" the natural behaviour of volume controllers.

  • 10HP
  • 30 mA +12V
  • ? mA -12V
  • ? mA 5V
  • 25 mm deep
