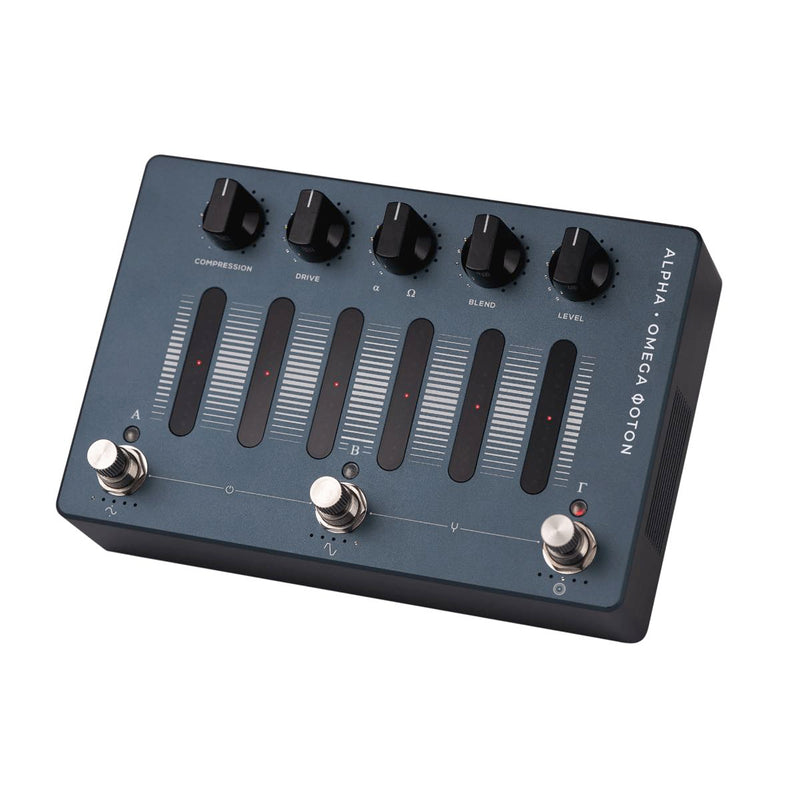

DARKGLASS ALPHA OMEGA PHOTON
A new era for musical credos has set more elevated standards.
Versatility, empowerment, limitless options, and ever-demanding tools at the disposal of every musician and composer are today on demand. A call for inventive devices continues to make musicians more inspired, clever and connected.
We took our Alpha·Omega, and with relentless efforts added all the learned engineering to it. Placing the iconic distortion circuit into a new paradigm enables a range of possibilities that were never before available.
A comprehensive design allows programming each part of the pedal, from compression, distortion, and cabinet simulation in the signal chain to presets via MIDI and the Darkglass Suite.
The Alpha·Omega now has its ultimate interface. Fully programmable, empowered, and never before this versatile.
Features
Compression
The Compression potentiometer is the one-knob solution for compression on the Alpha·Omega Photon. This controls the amount of input gain to the compressor and intelligently applies the correct amount of makeup gain so that your signal is always driven at the appropriate level, no matter how much compression is applied.
Drive
The Drive potentiometer adds distortion and drive to your signal. Crank this knob to apply the Alpha·Omega distortion to the distorted part of the signal chain.
Mod
The MOD potentiometer selects or mixes between the Alpha and Omega circuits. Alpha is punchy, tight with a lot of definition, whereas Omega is simply brutal and raw.
Blend
The Blend potentiometer mixes between the distortion signal and the clean sidechain signal.
Level
The Level potentiometer controls the master volume of the Alpha·Omega Photon.
Touch Sensitive Sliders
Each slider has a -12 dB to 12 dB range. From left to right, the frequency bands for each slider correspond to a low shelf, 250 Hz, 500 Hz, 1.5 kHz, 3 kHz, and a high shelf.
Input
This is the primary instrument input on the Alpha·Omega Photon. Connect your instrument or output from your pedal board to the 1/4” mono jack.
Aux In
The stereo input of the Alpha·Omega Photon enables the playback of backing tracks while practicing or recording. Connect your mobile phone, laptop etc. to the 1/8” stereo jack.
Headphone Output
Headphone Outputmeter next to the jack.
Balanced Outputs
The two balanced outputs add routing versatility and the option of using the Alpha·Omega Photon as a fully equipped audio interface. Connect your studio monitors, amplifier or other effects to the 1/4” balanced jacks using a TRS connector (Tip +, Ring -, Sleeve GND). If you feed an unbalanced input from these outputs, use an instrument cable with a mono 1/4” plug.
Direct Output
An XLR output with a ground lift switch provides a reliable standard connection to a mixing desk or an external audio interface for a guaranteed low-noise signal.
MIDI In
A standard 1/8” TRS (Type B) jack allows connecting an external MIDI controller to the Alpha·Omega Photon for even more flexibility.
USB
The USB-C port unlocks the Alpha·Omega Photon’s USB audio interface capabilities and enables interaction with the Darkglass Suite desktop app, allowing for software updates and access to the Darkglass IR library, containing hundreds of cabinet simulations. USB MIDI is also supported.
DIMENSIONS
180x120x60 mm | Weight 0.7 kg
