DAVE JONES DESIGN O'TOOL PLUS

Regular price $325.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

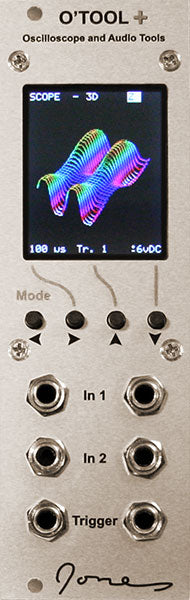

Two years in the making, it is finally ready. A greatly improved version of the original O'Tool module, with temperature stable readings, extreme accuracy, added modes, upgradability, and more.

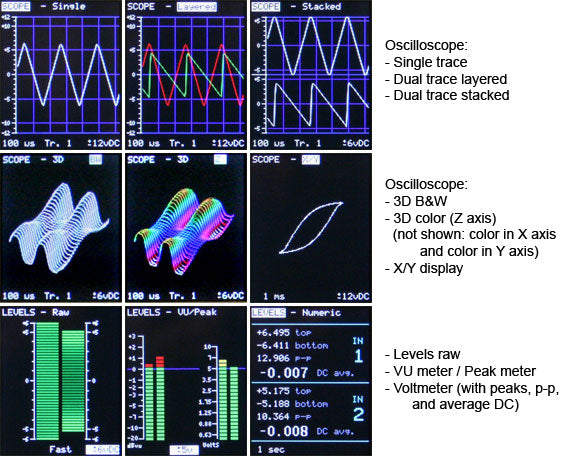

- Single channel oscilloscope
- Dual channel oscilloscope
- 3D oscilloscope
- X/Y display
- Level meter
- VU meter
- Peak meter
- Voltmeter (with p-p and average DC)
- Frequency meter
- Tuner (guitar tuner style)
- Linear spectrum analyzer
- Log spectrum analyzer
- Spectrogram
- BPM meter
- Metromome

It includes user configurable settings and can remember settings at power up for three users. That means you can have different settings for home, studio, and performances, or any three different sets of settings.

It is temperature stable and extremely accurate. It can monitor two signals, with inputs looped through to other modules. The scope modes include an external trigger option.

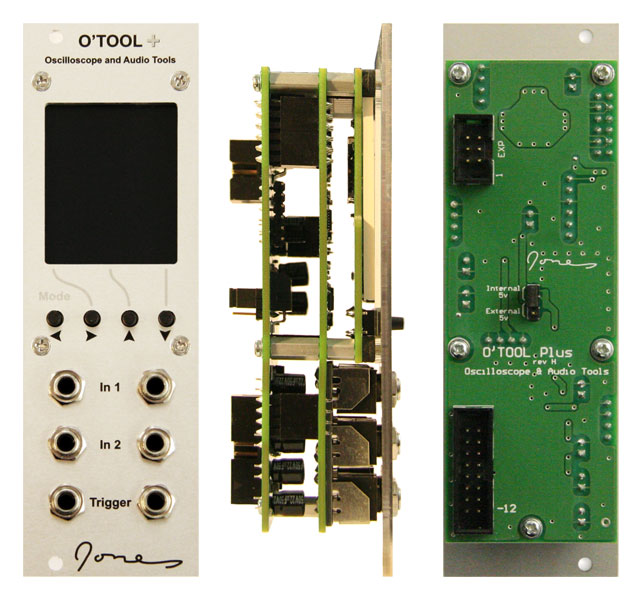

It is firmware upgradable. It has a jumper for internal or external 5 volt source. It has an expansion connector for possible future add-on modules.

Power requirements:

80ma +12v
22ma -12v

-or-

12ma +12v
70ma +5v
22ma -12v

Width: 8HP
Depth: 40mm
