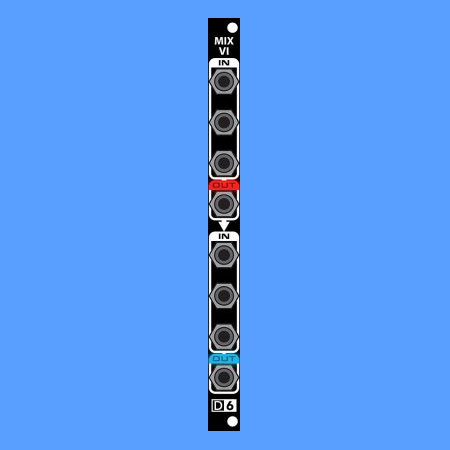

Mix VI is single 6-input or dual 3-input unity gain mixer. All 6 inputs are mixed together and sent out the bottom output. If you plug a patch cable into the top output, then the top 3 inputs no longer cascade down to the bottom section. The module has built-in LEDs that tell you what your signals are doing (red = positive, blue = negative). Use with the Division 6 Dual Mini Sequencer to do pitch transposition or combine multiple sequencers.

Specifications

- Power supply: +/- 12 VDC (reverse-polarity protected!)

- Current draw: 30mA (+) / 30mA (-)

- Width: 2HP

- Depth: 1.14in / 29mm
