Multiples are handy, but the more ways you split your signal the weaker it gets.

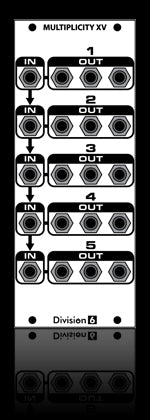

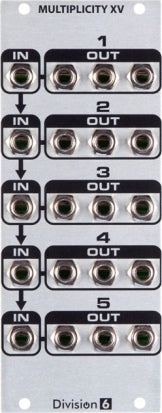

The Multiplicity XV is a buffered multiple; every single output jack regenerates your signal. Whether you are splitting audio or control voltages, there is no degradation.
Multiplicity's channels are cascaded, giving you flexibility in how many ways you split your signal. Plug a signal into input 1 and it will be available from all 15 outputs. Add a different signal into input 3 and it breaks the chain; signal 1 comes out 6 outputs and signal 2 is available at the remaining 9. You can have up to 5 inputs split 3 ways each.
- Power supply: +/- 12 VDC (reverse-polarity protected!)
- Power draw: 20ma / 20ma
- Width: 10HP
- Depth: .96in / 23mm
- Multiplicity XV Module
- Doepfer-style Power Cable
- (4) M3 x 6mm Rack Screws w/ Nylon Washers
