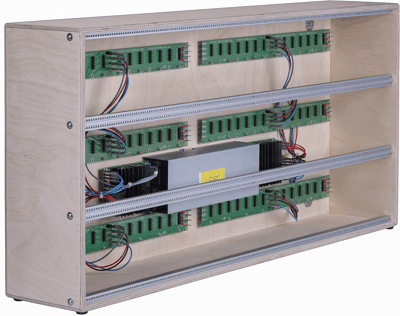

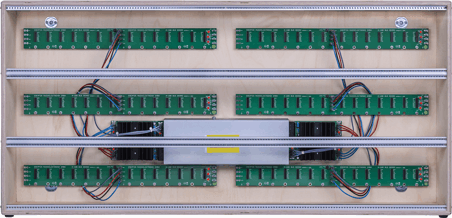

Name: DOEPFER A-100LMS9 LOW COST MONSTER 9U CASE
Brand: DOEPFER
SKU: doepfer_a-100lms9
Price: 1049.0 USD
Availability: InStock

DOEPFER A-100LMS9 LOW COST MONSTER 9U CASE

COLOR

WOOD

BLACK

Price

Free shipping over $99 to most states

Easy returns

Secure payments

In Stock

[{"id":42868549025965,"title":"WOOD","option1":"WOOD","option2":null,"option3":null,"sku":"doepfer_a-100lms9","requires_shipping":true,"taxable":true,"featured_image":{"id":31449606455469,"product_id":7121192190125,"position":1,"created_at":"2022-02-16T16:32:49-05:00","updated_at":"2022-02-16T16:32:49-05:00","alt":null,"width":452,"height":218,"src":"\/\/www.detroitmodular.com\/cdn\/shop\/products\/a-100lms9_front.gif?v=1645047169","variant_ids":[42868549025965]},"available":true,"name":"DOEPFER A-100LMS9 LOW COST MONSTER 9U CASE - WOOD","public_title":"WOOD","options":["WOOD"],"price":104900,"weight":29937,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":23744251134125,"position":1,"preview_image":{"aspect_ratio":2.073,"height":218,"width":452,"src":"\/\/www.detroitmodular.com\/cdn\/shop\/products\/a-100lms9_front.gif?v=1645047169"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42868549058733,"title":"BLACK","option1":"BLACK","option2":null,"option3":null,"sku":"doepfer_a-100lms10","requires_shipping":true,"taxable":true,"featured_image":{"id":34079137071277,"product_id":7121192190125,"position":3,"created_at":"2024-03-15T11:21:32-04:00","updated_at":"2024-03-15T11:21:34-04:00","alt":null,"width":1200,"height":892,"src":"\/\/www.detroitmodular.com\/cdn\/shop\/files\/A-100LMS9V_front.webp?v=1710516094","variant_ids":[42868549058733]},"available":true,"name":"DOEPFER A-100LMS9 LOW COST MONSTER 9U CASE - BLACK","public_title":"BLACK","options":["BLACK"],"price":109900,"weight":29937,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":26443464540333,"position":3,"preview_image":{"aspect_ratio":1.345,"height":892,"width":1200,"src":"\/\/www.detroitmodular.com\/cdn\/shop\/files\/A-100LMS9V_front.webp?v=1710516094"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

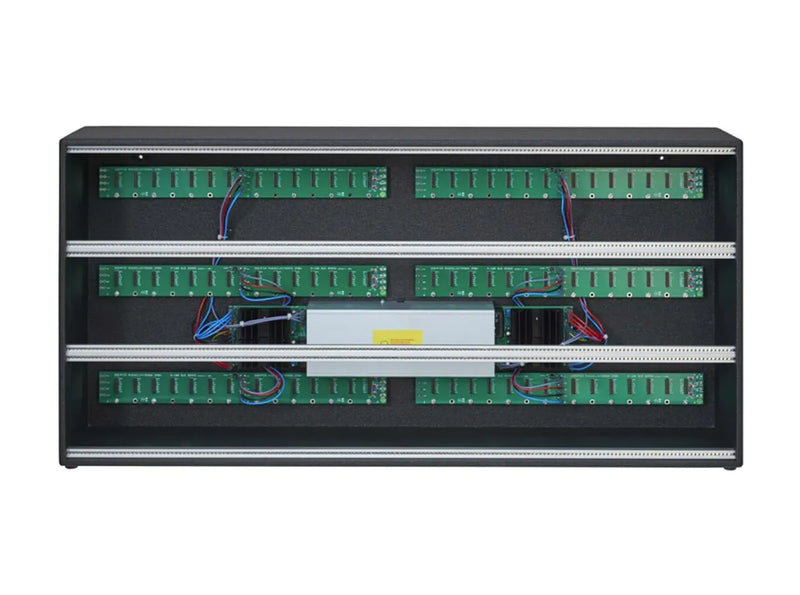

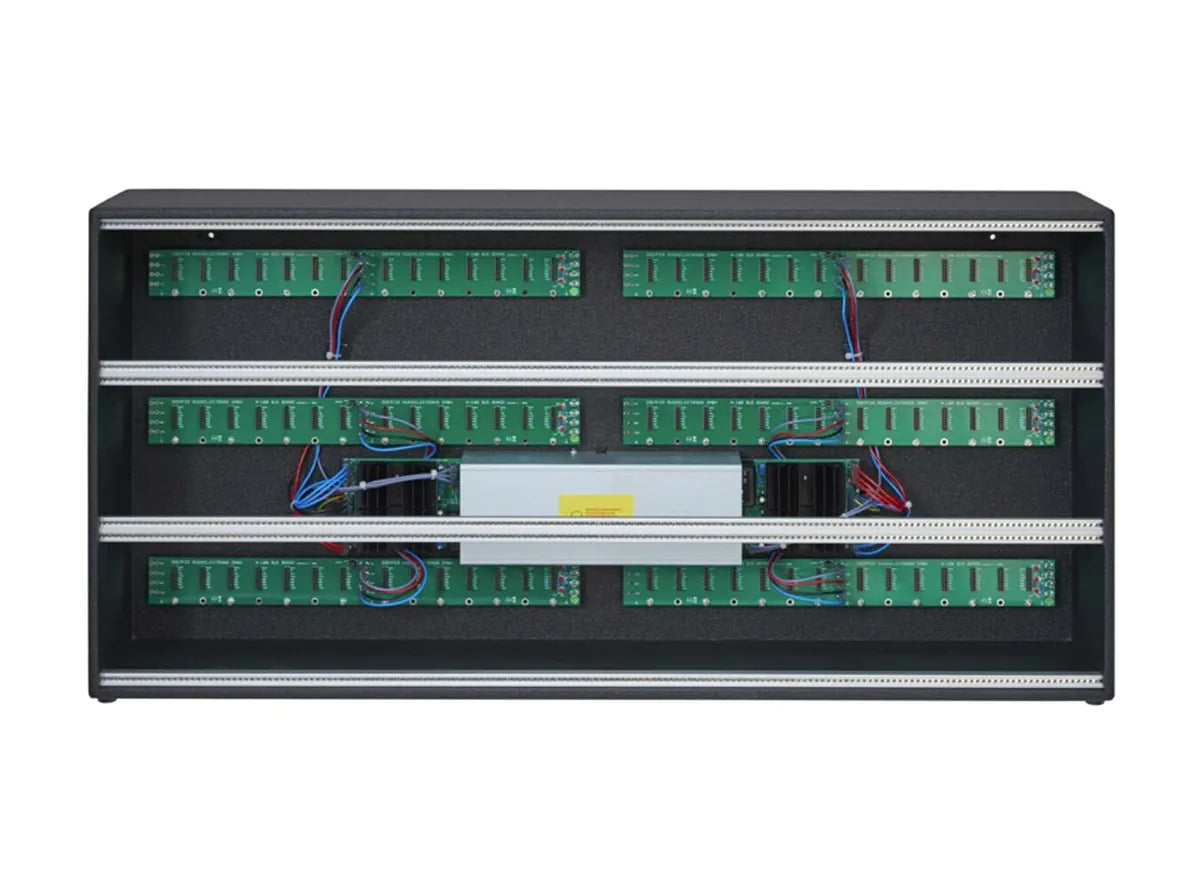

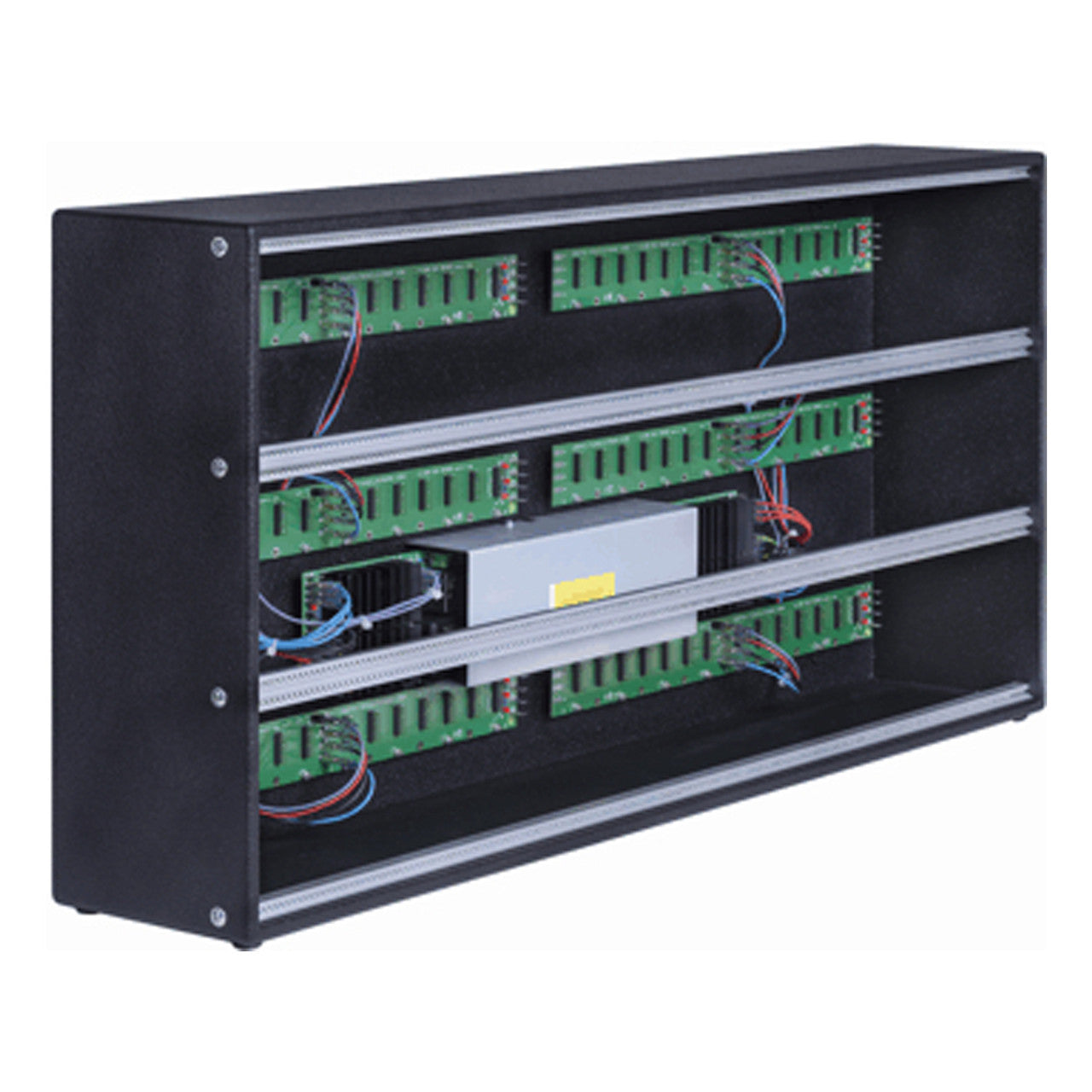

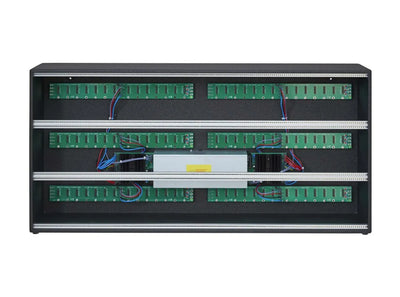

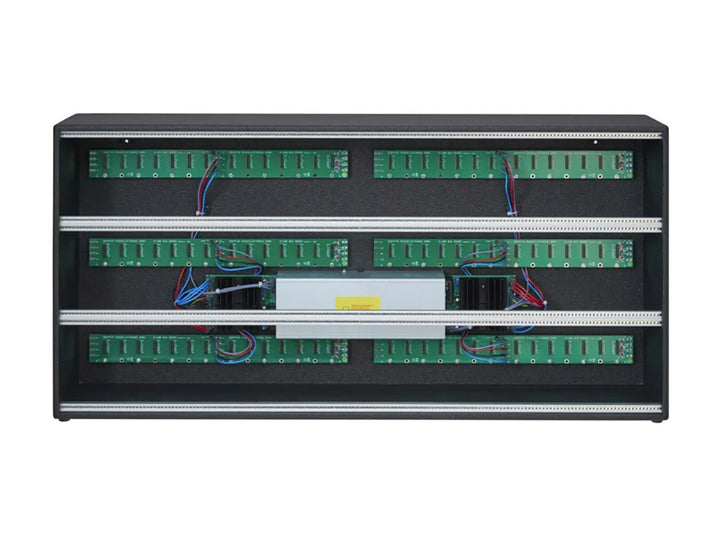

A-100LMS9 is the low cost version of the A-100PMS9. It is also available with black coating: A-100LMS9V

Dimensions and weight:
outside dimensions: ~ 87 (length) x 42 (height) x 16 (depth) cm
weight of the case (incl. bus boards, power supplies, without modules): ~ ? kg
available 19" width and height: 9 U x 168 HP

Quantity of bus boards: 6

Maximum Output Current:
two built-in A-100PSU3 : +12V/4000 mA, -12V/2400mA, +5V/8000mA

Assignment of the power supplies to the bus boards:
A-100PSU #1: bus board triple left
A-100PSU #2: bus board triple right
Each power supply A-100PSU3 delivers max. +12V/2000 mA, -12V/1200mA, +5V/4000mA

Usable depth for modules:
approx. 80 mm in the power supply area (bottom center)
approx. 110 mm in the remaining area
(measured from inner side of the front panel until end of the pc board of the module)

Position of the mains inlet: center of the rear panel
