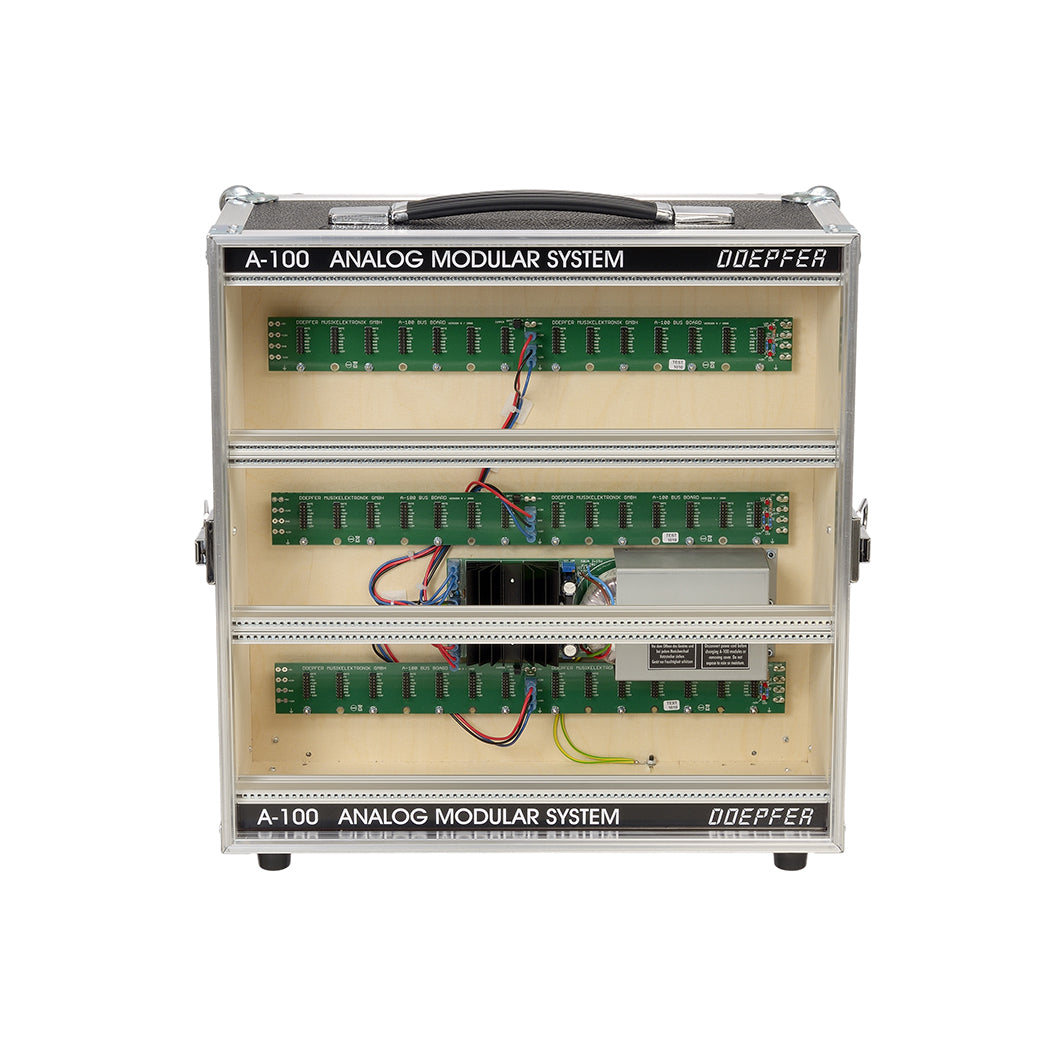

This an enlarged version of the A-100 suitcase with 9 U or three rows of modules. As only one power supply is required this is the most economic version of the A-100 suitcase. Apart from that the 9U version is identical to the 6U version.

Measures:
outside: approx. 465 (width) x 475 (height) x 170 (depth) mm, without cover and without rubber feet
outside: approx. 465 (width) x 485 (height) x 235 (depth) mm, with cover and with rubber feet
inside: 3 x 84 HP x 3 U, usable depth for A-100 modules: approx. 70 mm in the power supply area (bottom right), resp. approx. 100 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)

Ā

WeightĀ (without modules): about 8,3 kg

Ā

Electrical specifications:
mains voltage: 115V

contains: 1 power supply A-100PSU3 (2000mA), 3 bus boards

The new power supply is namedĀ A-100PSU3Ā and has availableĀ 2000mA@+12V, 1200mA@-12V and additional +5V with 4000mA. +5V are no longer required for A-100 modules but there are many modules from other manufacturers that require +5V.
