Regular price $1,949.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

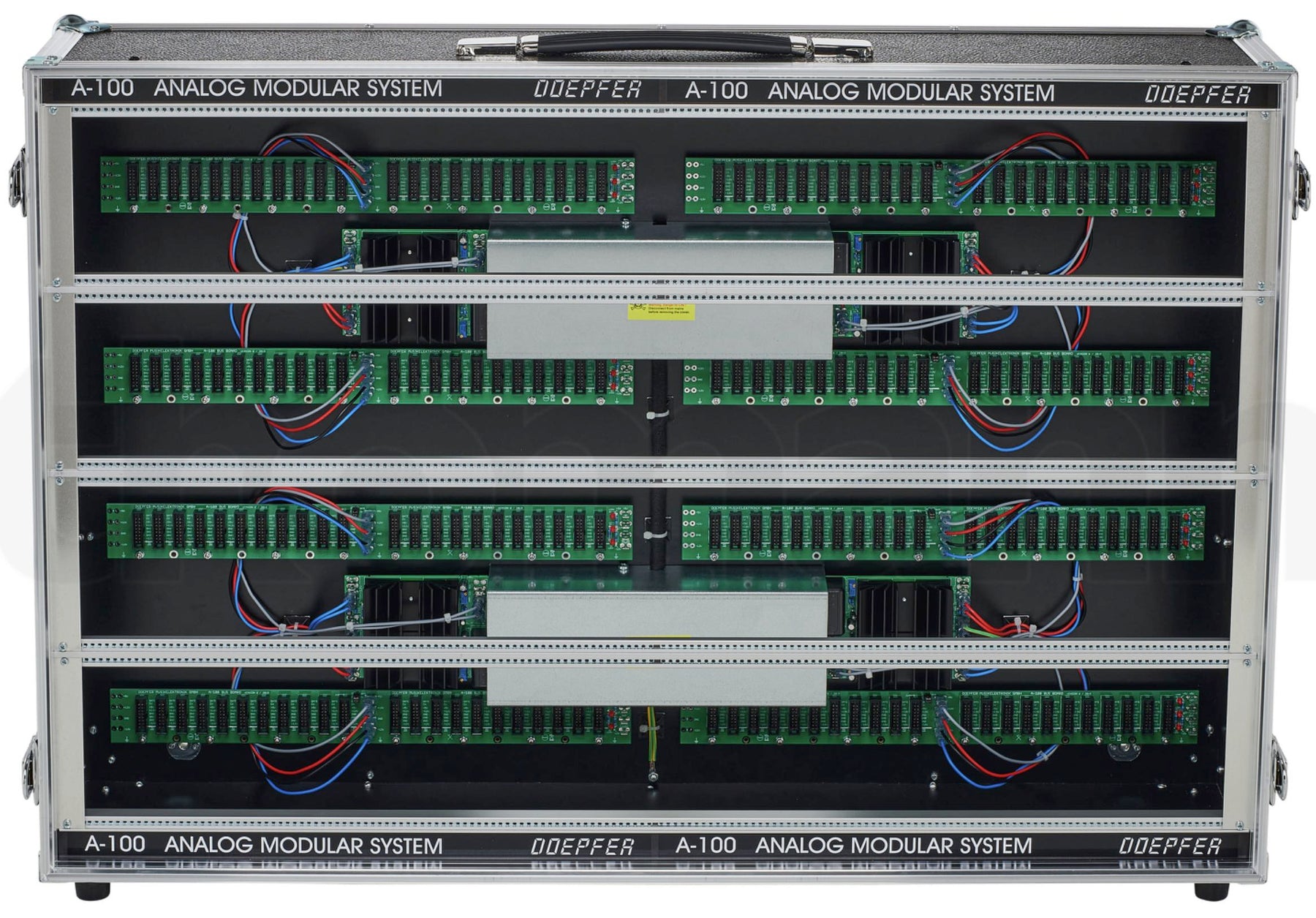

Single version of the 12U/168HP A-100 monster case (A-100PMS12sw) with the newest power busboards with shrouded headers:

outside dimensions (with front cover, closed state): ~ 90 (length) x 62 (height) x 23 (depth) cm
weight of the single case (incl. bus boards, power supplies, with front cover, without modules): ~ 20 kg
outside dimensions of the single case (without front cover):  ~ 90 (length) x 62 (height) x 18 (depth) cm
weight of the single case (incl. bus boards, power supplies, without front coverwithout modules): ~ 16 kg

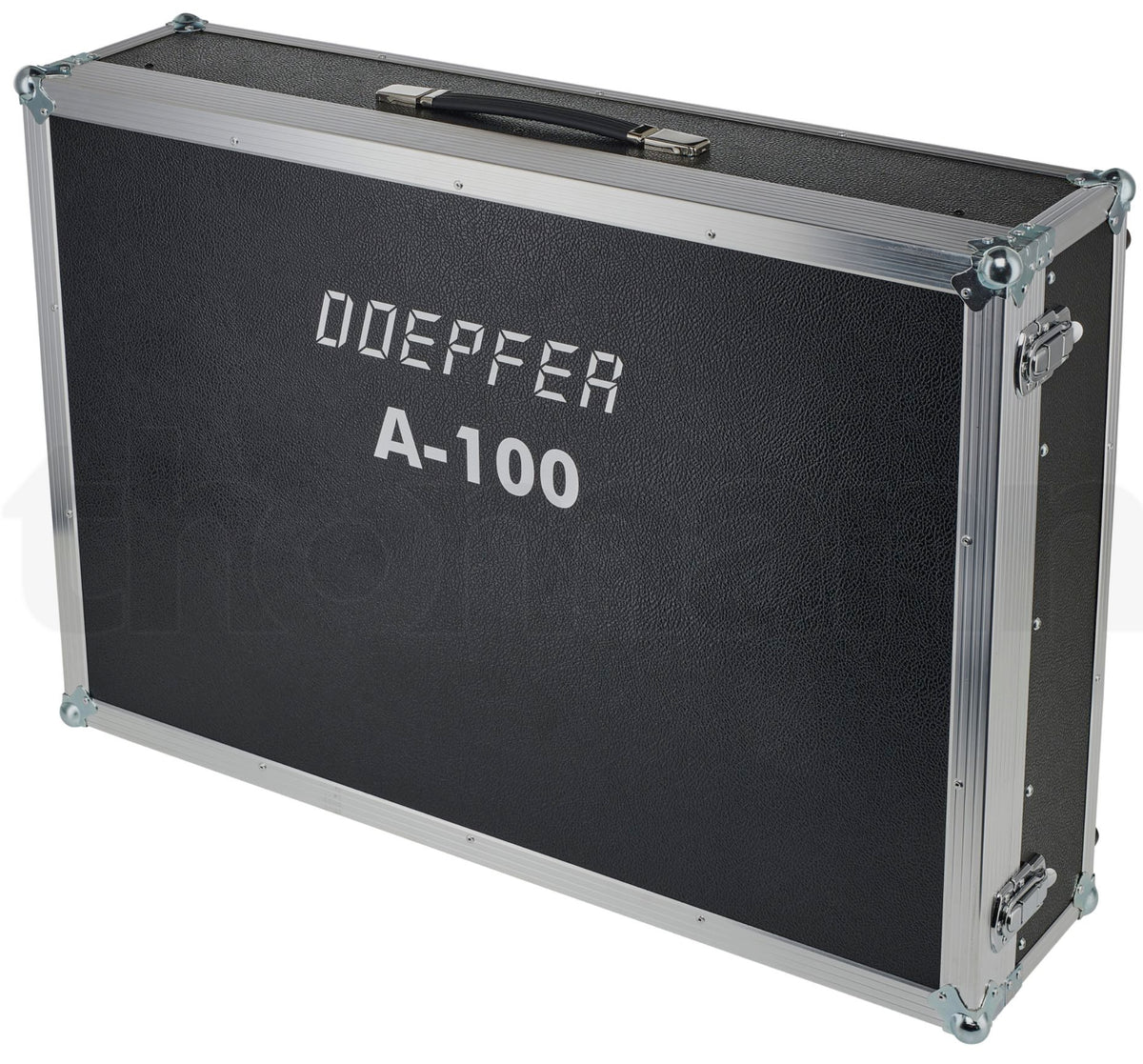

weight of the front cover: ~ 4 kg
available 19" width and height: 12 U x 168 HP
max. module current: 8A (four power supplies 2A each, one power supply is assigned to two bus boards)
inside usable depth for A-100 modules: approx. 70 mm in the power supply area (bottom right), resp. approx. 100 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)
position of the mains inlet: center of the rear panel (standard), upon request even at the front side (same remarks as for the normal suitcase are valid)

MAX POWER OUTPUT
with four built-in A-100PSU3 (since about early 2016): +12V/8000 mA, -12V/4800mA, +5V/16000mA
