A-110-6 is a Trapezoid Thru Zero Quadrature VCO. The module is based on an idea by Donald Tillman from 2003 but has been revised for the use of modern electronic circuits (no OTAs/CA3280). Because of it's unique trapezoid core it's totally different compared to other VCOs. But the trapezoid core is not the only specialty: it is also a quadrature VCO and features linear thru zero frequency modulation.
The term "quadrature" means in this connection that the oscillator outputs two trapezoid waves with 90 degrees phase shift. The same as sine and cosine of a standard quadrature oscillator like the A-110-4 or A-143-9. These waveforms are called TRASIN (trapezoid sine) and TRACOS (trapezoid cosine).
The term "Thru-Zero" means that even "negative" frequencies are generated. But this a bit a misleading term as negative frequencies do not really exist. "Negative" means in this connection simply that the TRASIN/TRACOS waves will stop when the linear control voltage reaches 0V and continue with the opposite directions as the linear control voltage becomes negative and vice versa.
The module has two control sections: linear and a exponential. The exponential section consists of the XTune control, the 1V/Oct input and the XFM input with the corresponding attenuator XFM. The exponential control voltage is the sum of these three voltages. The linear section consists of the LFrq control and the LFM input with the corresponding attenuator LFM. The linear control voltage is the sum of these two voltages. A dual color LED is used to display the polarity of the linear control voltage. The pitch of all outputs is determined by the control voltages of both sections. The linear section is used to control the pitch in a linear manner. When the LFrq control (LFrq means Linear Frequency Control) is fully CW the module works like a normal VCO and the LED lights red. The pitch is then controlled by the exponential section with the manual Tune control XTune and the exponential frequency control inputs 1V/Oct and XFM. 1V/Oct is used to control the pitch by a 1V/Oct CV source (e.g. sequencer or Midi/USB-to-CV interface). XFM is used to apply an exponential frequency modulation with adjustable depth (e.g. from an LFO or another VCO). As the LFrq control is turned counterclockwise starting from the fully CW position the frequency is lowered in a linear manner until the TRASIN/TRACOS waves (nearly) stop at the center position of LFrq (provided that no LFM signal is present). As the LFrq control is moved from the center towards the CCW position the waves start again but into reverse direction and the LED turns yellow. When the fully CCW position of LFrq is reached the module works again like a normal VCO. But much more exciting is the usage of the LFM input to modify the linear control voltage by an external control voltage (typically another VCO). Linear modulation by another oscillator using the thru zero feature in combination with the trapezoid waveforms generates audio spectra than cannot be obtained from any other oscillator without the thru zero function. The reason is that a "normal" VCO will simply stop as the linear control voltage becomes zero or negative. But a thru zero VCO will start again with "negative" frequencies as the the linear control voltage becomes negative.
Other waveforms like triangle, sawtooth, rectangle and sine can be obtained from the TRASIN/TRACOS signals (triangle e.g. simply by subtracting TRISIN and TRICOS, SAWSIN and SAWCOS by switching the other waveforms). And all five waveforms will be available as quadrature pairs (i.e. with 90 degrees phase shift).
That's why we think to add all these waveform outputs to the module in the final version - or alternatively via a breakout module which makes all 10 waveforms available (trapezoid, triangle, sine, sawtooth, rectangle - all as quadrature pairs). We think also of an LFO version of the module (same features but low frequency range with LED displays of the outputs).
Latest news (as of October 2016):

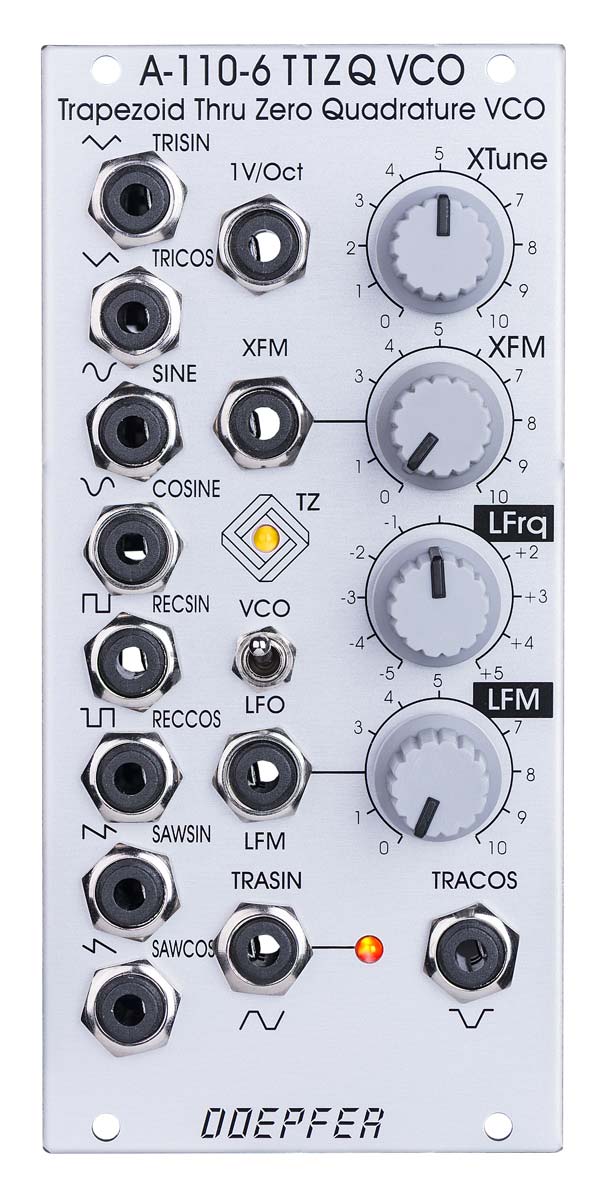

We decided to add all waveform outputs to the final version of the module rather that offering a separate breakout module. The new picture on the left shows the arrangement of the additional sockets. We also added an LED that displays the signal of the TRASIN output (in addition to the LED that displays the thru zero function). By means of 2 internal jumpers the module can be converted into a VCLFO.
Latest news (as of November 2016):
We just try out if it makes sense to add a switch to select between VCO and VCLFO mode. For this the front panel and the pc board has to be modified.
Date of delivery: July 2017
Breite/Width: 8TE / 12HP / 60.6 mm Tiefe/Depth: 55 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel) Strombedarf/Current: +80mA (+12V) / -70mA (-12V)
|
|
A-110-6 Waveforms
