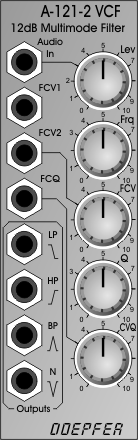

DOEPFER A-121-2 MULTIMODE FILTER

DOEPFER A-121-2 MULTIMODE FILTER

DOEPFER A-121-2 MULTIMODE FILTER

Regular price $160.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

Module A-121 is a voltage-controlled multi-mode filter with a cut-off slope of -12 dB / octave. Four simultaneous outputs are available, each with different characteristics: low-pass, band-pass, high-pass and notch (or band reject). The cut-off frequency determines the point at which the respective filter effects appear. The frequency can be adjusted manually, or by voltage control (Filter modulation, for instance by an LFO or ADSR). Two CV inputs are available, whose control voltages are summed. Resonance (Emphasis or Q ) can be adjusted manually, or by voltage control, right up to self-oscillation, in which case it will behave like a sine wave oscillator.

Technical notes: Module A-121-2 is the successor of the obsolete moduleĀ A-121. But the circuitry is totally different from the A-121 which used the obsolete CEM3320 filter circuit. The sound of the new module A-121-2 is identical to filter of theĀ Dark Energy IIĀ butĀ  has been expanded by the voltage controlled resonance feature.


Breite/Width: 8 TE / 8 HP / 40.3 mm
Tiefe/Depth: 50 mm (gemessen ab der RĆ¼ckseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +40mA (+12V) / -40mA (-12V)
