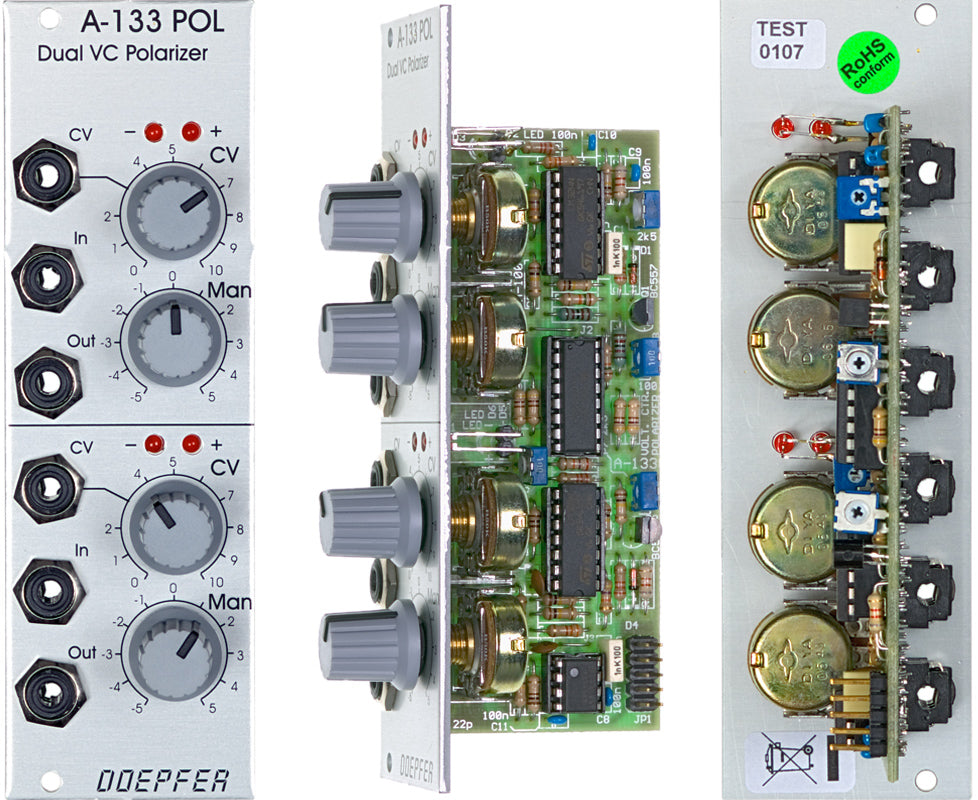

DOEPFER A-133 DUAL VC POLARIZER

DOEPFER A-133 DUAL VC POLARIZER

DOEPFER A-133 DUAL VC POLARIZER

Regular price $99.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

A-133 is a special dual voltage controlled amplifier that enables both positive and negative amplifications. Negative amplification means in this context that the signal is inverted. The main application of the module is the processing of control voltages,Ā e.g. ADSR or LFO but the module can be used also for audio applications (e.g. as a waveshaper, see patch examples below).

The amplification range is aboutĀ  -2.5....0....+2.5 (other amplification ranges for small additional charges, e.g. -1...+1 or -5...+5). Amplification can be adjusted manually (Man control) and by an external control voltage with attenuator (CV). The present amplification is displayed with two LEDs: one for positive and one for negative amplifications (not a signal display but amplification diplay, similar toĀ A-134).
Another module with polarizing function is theĀ Polarizing Mixer A-138c.

For more detailed information please look at the English user's manualĀ A133_man.pdf


Breite/Width: 8TE / 8HP / 40.3 mm
Tiefe/Depth: 50 mm (gemessen ab Frontplatten-RĆ¼ckseite / measured from the rear side of the front panel)
Strombedarf/Current: 30 mA
