DOEPFER A-142-4 QUAD DECAY

DOEPFER A-142-4 QUAD DECAY

DOEPFER A-142-4 QUAD DECAY

Regular price $139.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

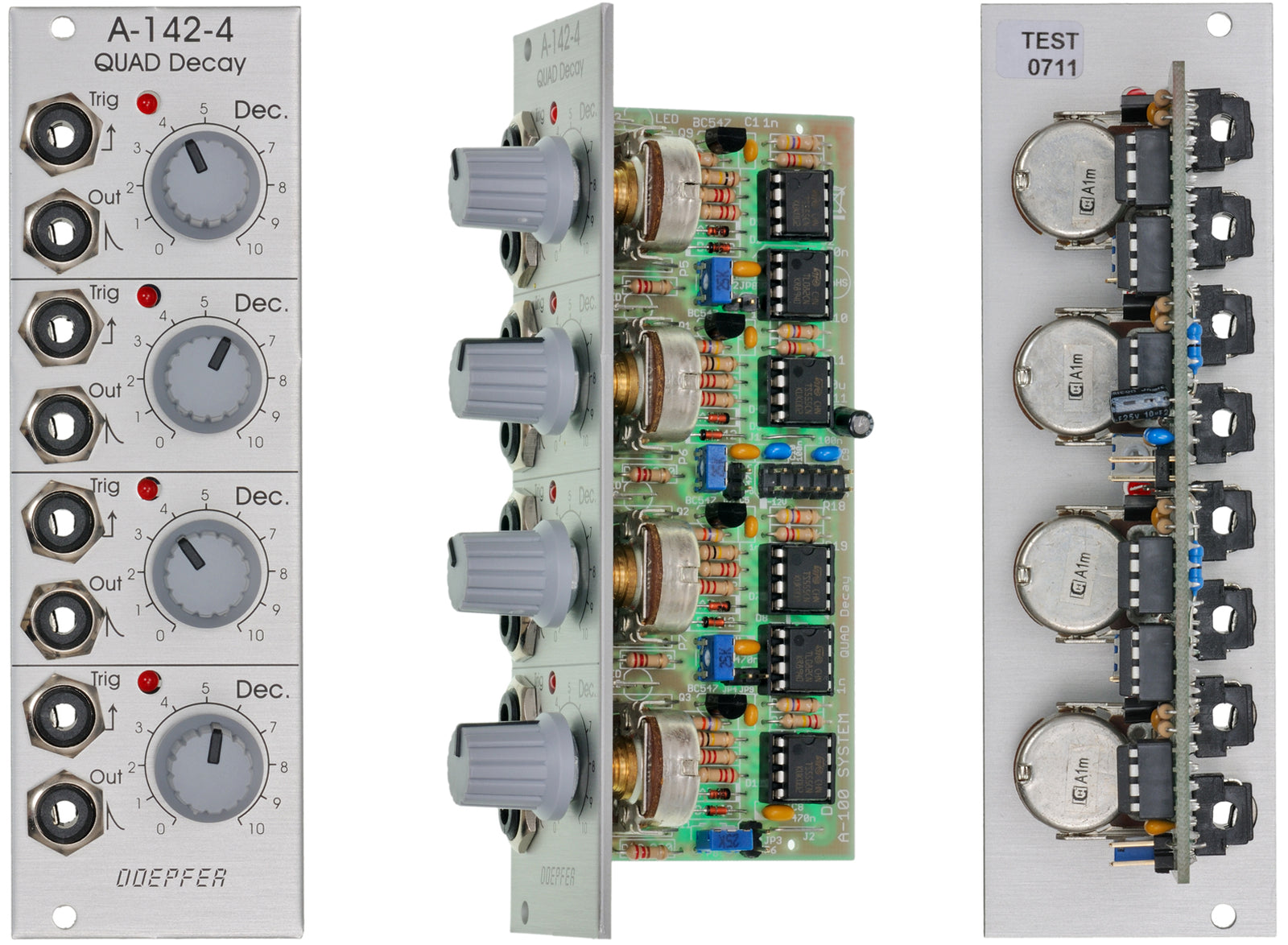

Module A-142-4 contains four simple envelope generators. The only time parameter is Decay and can be adjusted manuall by means of the Dec. control in the range 2 ms ... 2 seconds. The attack time can be adjusted internally by means of a separate trimming potentiometer for each sub-unit in the range 1 ms ... 15 ms. The factory setting is about 3 ms. This is the attack time of the TB303. Each envelope output has a LED control available. The trigger inputs are normalled (1 -> 2 -> 3 -> 4).

Suggestions for modifications:

  • Each sub-unit has a pin header with two pins available. When the two pins are shortened (e.g. by means of a jumper or a toggle switch connected to the two pins) the corresponding sub-unit changes to a loop mode. In this mode the unit is triggered by itself like an LFO..

  • By changing the value of a capacitor the time range can be modified (e.g. 0.2 ms ... 0.2 seconds or 20 ms ... 20 seconds)


Breite/Width: 8 TE / 8 HP / 40.3 mm
Tiefe/Depth: 50 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 30 mA
