DOEPFER A-143-3 QUAD LFO

DOEPFER A-143-3 QUAD LFO

DOEPFER A-143-3 QUAD LFO

Regular price $145.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In stock, ready to ship

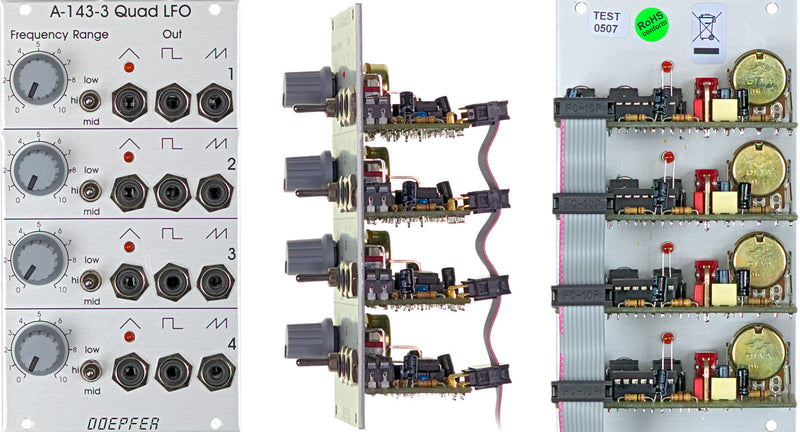

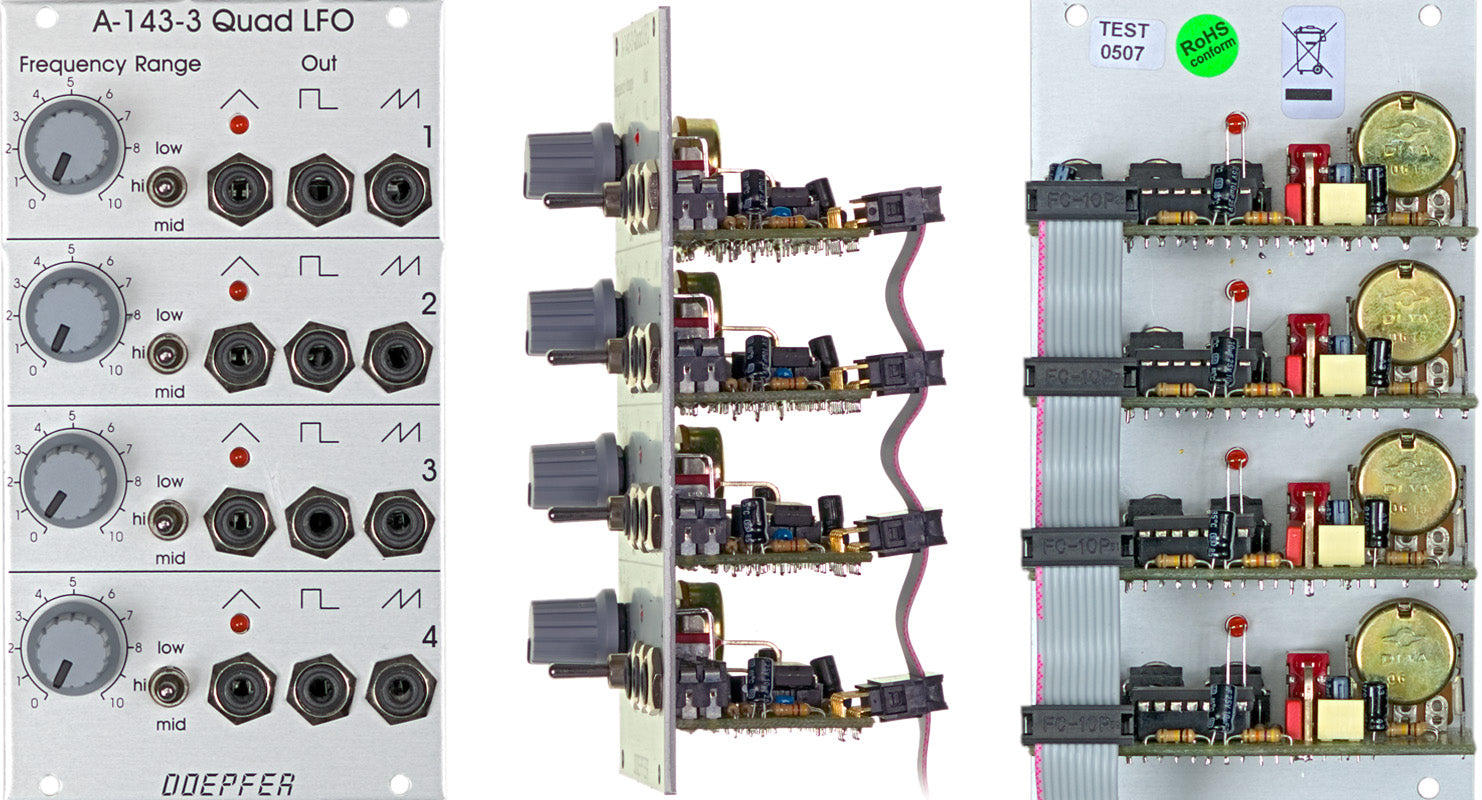

Module A-143-3 is a low-cost four-fold modulation oscillator, often called LFO (low frequency oscillator). Like the other modules of the A-143 series (A-143-1Ā andĀ A-143-2) not a very "exciting" module, just a bread-and-butter device and a simple demon for work. The module contains four simple LFOs. Each LFO is equipped with three waveform outputs: triangle, rectangle and rising sawtooth. The frequency of the sawtooth output is twice the frequency of the other outputs.Ā A three-way switch is used to select one of three frequency ranges mid-low-high, spanning from about two cycles per minute at the lowest, to moderate audio frequency at the highest (about 5 kHz).

If other waveforms or additional LFO features are required (e.g. reset input, adjustable waveform, voltage controlled frequency) the LFO modulesĀ A-145,Ā A-146Ā andĀ A-147are available.

A detailed description of the module can be found in the user's manualĀ Ā A1433_man.pdf

As we have not sufficient module numbers left, allĀ multiple modulation sourcesĀ will be collected in the A-143-x group (A-143-1 Quad AD, A-143-2 Quad ADSR, A-143-3 Quad LFO and so on)


Breite/Width: 14TE / 14HP / 70.8 mm
Tiefe/Depth: 40 mm (gemessen ab der RĆ¼ckseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 70 mA
