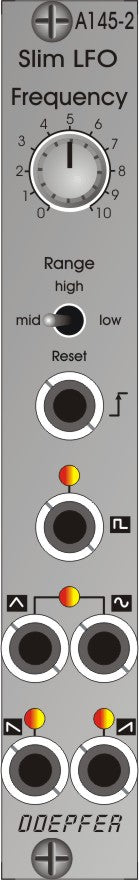

Module A-145-2 is the slim version of the A-145-1. The features of A-145-1 and A-145-2 are identical. Only the arrangement of the controls and sockets is different because of the clearly smaller front panel. In addition the A-145-2 features LED displays also for the rectangle and both sawtooth signals. And the LFO signals are displayed by means of dual-color LEDs (yellow/red: red = positive output voltage, yellow = negative output voltage).

For more detailed information please look at the user's manual A145_man.pdf which is also valid for the A-145-2.

Width: 4 HP / 20.0 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +30mA (+12V) / -20mA (-12V)
