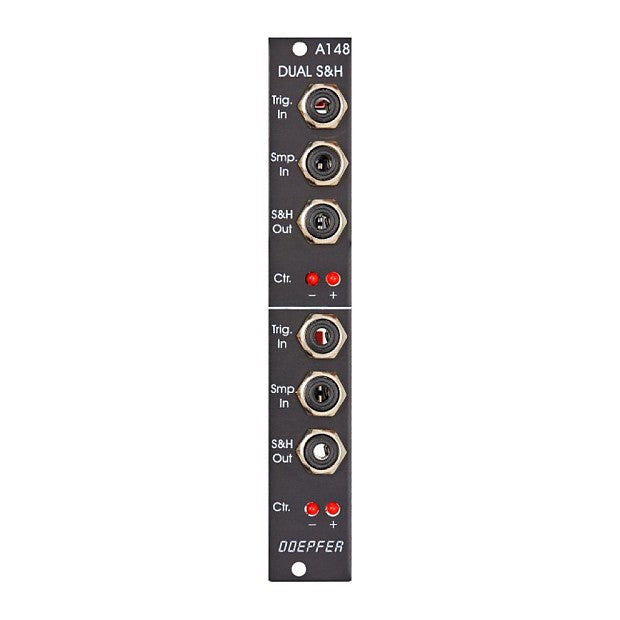

DOEPFER A-148v DUAL S-H VINTAGE EDITION

DOEPFER A-148v DUAL S-H VINTAGE EDITION
Regular price$9000
$90.00
/
- Free shipping over $99
- Easy returns
- Secure payments
- In Stock
Module A-148 (Dual S&H) has two identical sample & hold modules, designed to produce 'staircase' voltages. The signal present at the sample input is sampled at a rate set by the signal at the trigger input, and held at that voltage at the S&H output. For more detailed information please look at the English user's manual: A148_man.pdf Similar modules: A-152 Voltage Addressed Track&Hold / Switch (Multiplexer) / Digital Outputs Since August 2005 an improved version of the module is manufactured: For each sub-module the operation mode S&H (sample&hold) or T&H (track&hold) can be selected by a jumper. In T&H mode the output signal follows the input signal while the trigger input is "high". As soon as the trigger input turns to "low" the last voltage is stored. The factory setting is S&H for the upper device and T&H for the lower device. At the bottom of this page the function of the jumpers is described. In addition the complete A-100 voltage range -12...+12V can be processed (no longer limited to -8...+8V as for the previous version). |
||
Breite/Width: 4 TE / 4 HP / 20.0 mm |
