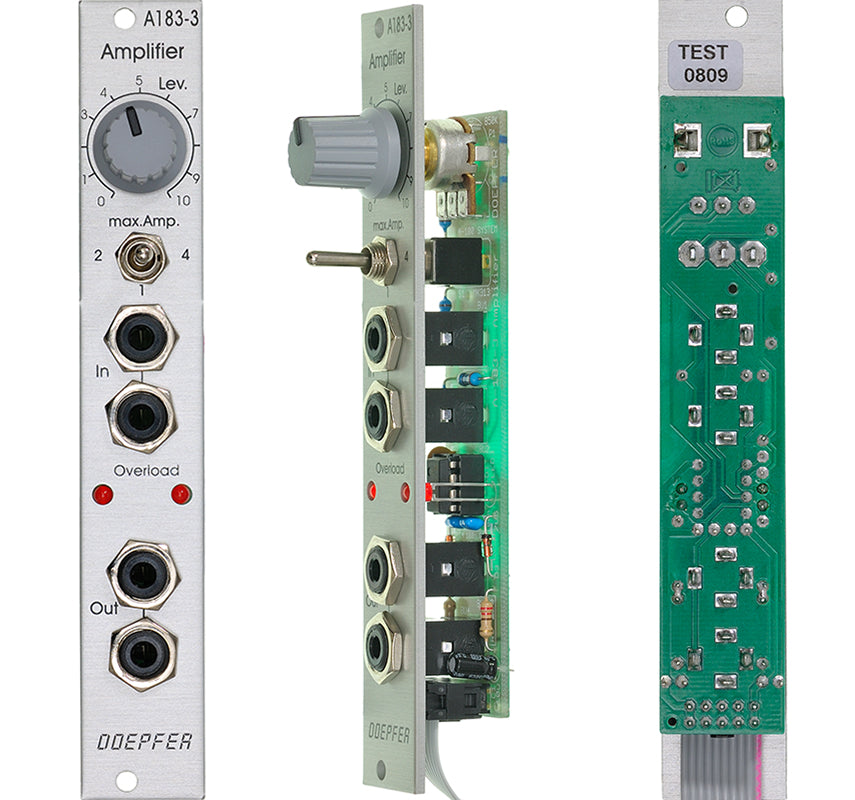

Module A-183-3 is a simple amplifier. It is DC coupled and can be used for both CV and audio signals. The maximal amplification can be switched between 1, 2 and 4 (in position 1 the module does not work as a real amplifier but only as attenuator). The level can be adjusted by means of  the Level control between zero and the chosen maximim amplification (1/2/4). Two overload LEDs indicate if the output signal goes beyond about +10V or becomes less than about -10V. Input and output are equipped with miniature 2-fold multiples (nothing but 2 connected sockets).

The main application of this module is to adapt differing audio or CV levels between different modules or systems. For example LFO, ADSR or Gate levels between modules of different manufacturers can be increased or attenuated. But even audio signals can be attenuated or amplified up to 4. But the module cannot be used as an amplifer for external low level audio signals (e.g. microphones or electric guitars) !
Breite/Width: 4 TE / 4 HP / 20.0 mm
Tiefe/Depth: 20 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: 20 mA
