DOEPFER A-183-5 PASSIVE QUAD ATTENUATOR

DOEPFER A-183-5 PASSIVE QUAD ATTENUATOR

DOEPFER A-183-5 PASSIVE QUAD ATTENUATOR

Regular price $79.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

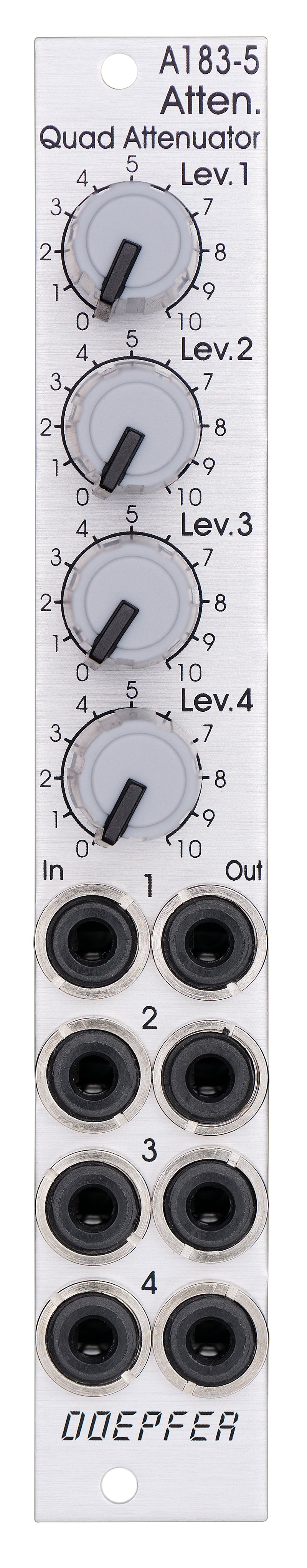

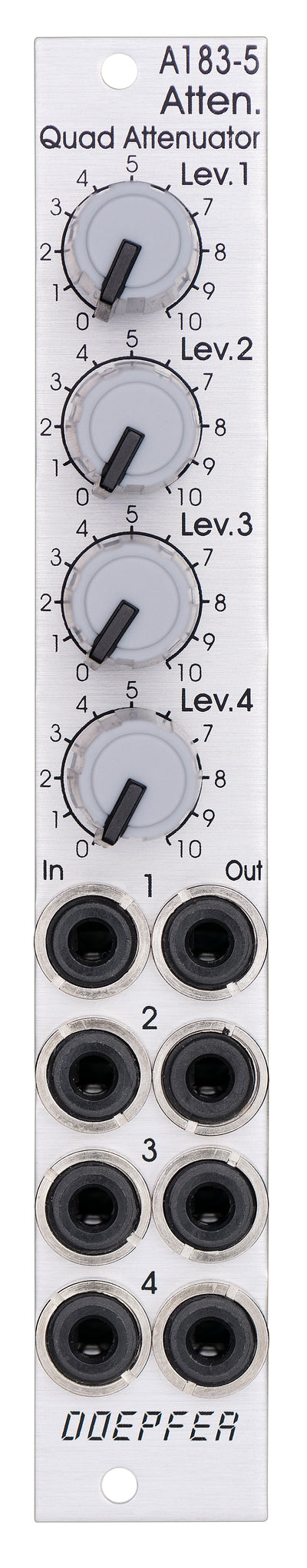

Module A-183-5 is a simple passive quad attenuator. Passive means in this context, that each unit is made of two sockets and a 50k linear potentiometer only. There are no active parts like amplifiers or buffers and no power supply is required.
This is how the A-183-5 works: At the output socket appears the attenuated input signal, i.e. zero level at the fully CCW position and max. level and the fully CW position.

Applications:
Adjustable level of CV or audio signals to control other modules that do not have attenuators available.

Breite/Width: 4 TE / 4 HP / 20.0 mm
Tiefe/Depth: 20 mm (gemessen ab der Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +0mA (+12V) / -0mA (-12V)
