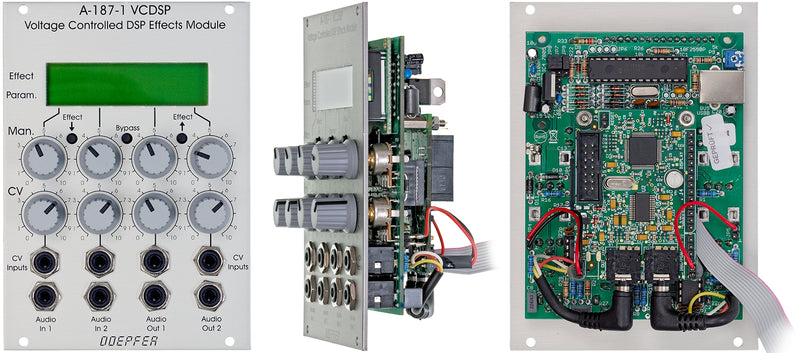

Module A-187-1 is a DSP based effects module. Four parameters of the selected digital effect are voltage controlled. The main effect (e.g. reverb, delay, pitch-shifter, equalizer) is selected by the two small buttons effect up/down. The upper row of the display shows the effect that is currently selected.In the lower row the four parameters are shown as well as a small bar left from the abbreviation that displays the current parameter value. Each parameter can be adjusted manually (upper potentiometer row) and modified by external control voltages (lower row of the potentiometers and upper row of the sockets). The lower row of the sockets containes the two audio inputs and outputs.
Another button (bypass) is used to turn the effect on/off. When bypass is chosen the upper line of the display shows in turn "BYPASS" and the name of the pre-selected effect. In the bypass mode another effect can be pre-selected and called-up by pressing the bypass button again. Even the effect parameters can be adjusted and are displayed with the bar graphs. But they become effective not before the bypass mode is left.
A list with all effects and the voltage controlled parameters is shown below.
The module is equipped with two audio inputs and two audio outputs because the DSP board features stereo audio processing. The audio inputs can process usual A-100 signal levels without clipping/distortion. For higher levels external attenuators (e.g.. A-183-1) or VCAs may be used.

A ready made DSP board is used inside the A-187-1 module. Consequently only these effects and parameters are available that are supported by the DSP module. Some parameters can be changed only in steps or with audible artefacts. The DSP board has 20 Bit DA and AD converter with 32 kHz sample rate available. The inter sound processing uses 24 Bit. Some audio examples can be found below.

Notes for customers who already rown an A-187-1 module:

  • The USB connector is not used so far. But we added it to the board provided that there will be an update of the A-187-1 firmware in the future. We will explain how to use the USB connector as soon as new firmware is available. So far there are no plans for a new firmwire.
  • Pay attention to the additional safety notes for module A-187-1: A187_1_notes.pdf
Table of available effects:
Effect Name Parameter 1 Parameter 2 Parameter 3 Parameter 4
Equalizer 1 31 Hz 62 Hz 125 Hz 250 Hz
Equalizer 2 250 Hz 500 Hz 1 kHz 2 kHz
Equalizer 3 2 kHz 4 kHz 8 kHz 12 kHz
Distortion Input Resonance VCF Depth
Pitch Shifter Shift Resonance VCF Balance
Reverb Predelay Reverb Time High Dump Volume
Echo Time (*) Feedback High Dump Volume
Chorus/Flanger/Echo 1 Delay (*) Feedback Rate Depth
Chorus/Flanger/Echo 2 Delay (*) Feedback Rate Volume
Delay & Reverb 1 Delay (*) Feedback  Time Volume
Delay & Reverb 2 Feedback Volume  Time Volume
Chorus & Delay Feedback Volume Feedback Volume
remarks/technical datas:
  • Reverb PreDelay ( around 0 .. 50 ms), Reverb time ( about 40 ms up to 500 ms)  / Chorus/Flanging (1 ms to 41 ms) ,  Delay ( 1 ms .. 165 ms) - all in 128 steps
  • Chorus/Flaging Rate  about 0,025 Hz till around 12,5 Hz  in 128 steps
  • Pitch Shifter: -12 half tones .... + 12 half tone - in half tone steps
  • all Equalizer parameters  in steps of 1 dB  from about -24dB to about +12dB

(*) possible artefacts - audibility depends highly on input signal and the other parameters


Audio examples from our customers:

http://soundcloud.com/qu-one/doepfer-a-187-first-10-minutes

http://soundcloud.com/madrayken/a-187-rhythm

http://soundcloud.com/madrayken/a-102-vcs (A-102 and A-187-1)


Audio examples:

A187_1_reverb_01.mp3
The sound source is a simple 2-note sequence generated by two A-110 VCOs processed by an A-131 VCA which is controlled by an ADSR. The original is heard in the first cycle. Then the reverb time (parameter 3) is increased little by little until the maximum is reached. The sequence stops to hear the pure reverb. The sequence starts again and the reverb time is set to a lower value. Then the pre-delay time (parameter 2) is modulated by the same ADSR that is used to control the VCA. The resulting effect sounds a bit like a spring reverb. After a while the reverb time is increased again and the sequence stops.

A187_1_delay_01.mp3
A simple 3-note sequence generated by two A-110 VCOs processed by an A-106-6 VCF with ADSR is the sound source. This original sequence is heard in the first cycle. Then the delay effect is added in the second cycle by changing the effect volume (parameter 1). In the following cycles the delay time (parameter 2) and feedback (parameter 3) are increased. At the end the feedback is set to maximum and the audio input signal is removed (i.e. only the delay loop is heard).

A187_1_pitch_shift_01.mp3 (
A male voice loop is used as audio source. The unchanged original signal is heard in the first cycle. In the second cycle the pitch-shifted signal is added to original signal by changing the signal balance (parameter 4) and the pitch shift is changed manually (parameter 1). In the following cycles pitch shift (parameter 1) is modulated by an triangle LFO and then by a rectangle LFO.

A187_1_flanger_01.mp3
A short sequence generated by two A-110 VCOs with an A-131 VCA controlled by an ADSR is the sound source. In the first cycles
feedback, rate and depth (parameters 2, 3 and 4) are changed manually. Then the internal LFO is turned off (parameter 4 / depth = 0) and the delay time (parameter 1) and feedback (parameter 2) are controlled by a CV output (delay time) and a gate output (feedback) of the sequencer. In this patch each note of the sequence has a different delay time and feedback.

A187_1_flanger_02.mp3
Nothing but noise (A-118) processed by the A-187-1. Feedback and depth (parameters 2 and 4) are at maximum, rate (parameter 3) at a medium setting. The delay time (parameter 1) is changed manually from minimum to maximum - a little bit more after each LFO cycle. At the end of the example the rate of the internal LFO (parameter 3) is lowered.

A187_1_special_01.mp3 (effect no. 16)
Another short sequence generated by two A-110 processed by an A-106-6 and A-131 with ADSRs is the sound source. This original sequence is heard in the first cycle. In the second cycle the effect is added (parameter 2) and the echo feedback (parameter 4) is increased. Then the echo time (parameter 3) is increased. After a while the pitch shift is added (parameter 1). The pseudo-polyphonic sound comes only from the echoed pitch-shifted signal ! The pitch of the two A-110 is not changed. The pitch shift (parameter 1) is modulated by a S&H which is fed by a random signal (A-118) and triggered at step 1 of the sequence, i.e. the pitch shift changes with each cycle of the sequence.


Breite/Width: 18 TE / 18 HP / 91,3 mm
Tiefe/Depth: 60 mm (gemessen an Rückseite der Frontplatte / measured from the rear side of the front panel)
Strombedarf/Current: +200mA (+12V) / -20mA (-12V)
Der Strombedarf kann durch Abschalten der Hintergrundbeleuchtung des Displays auf ca. 140 mA verringert werden. Zu diesem Zweck muss der Widerstand R33 (22 Ohm) am oberen Rand der Platine entfernt werden (z.B. Abzwicken).
The current can be reduced to about 140 mA by turning off the background illumination of the display. For this the resistor R33 (22 Ohm) on the top edge of the pcb has to be removed (e.g. pinched off).
