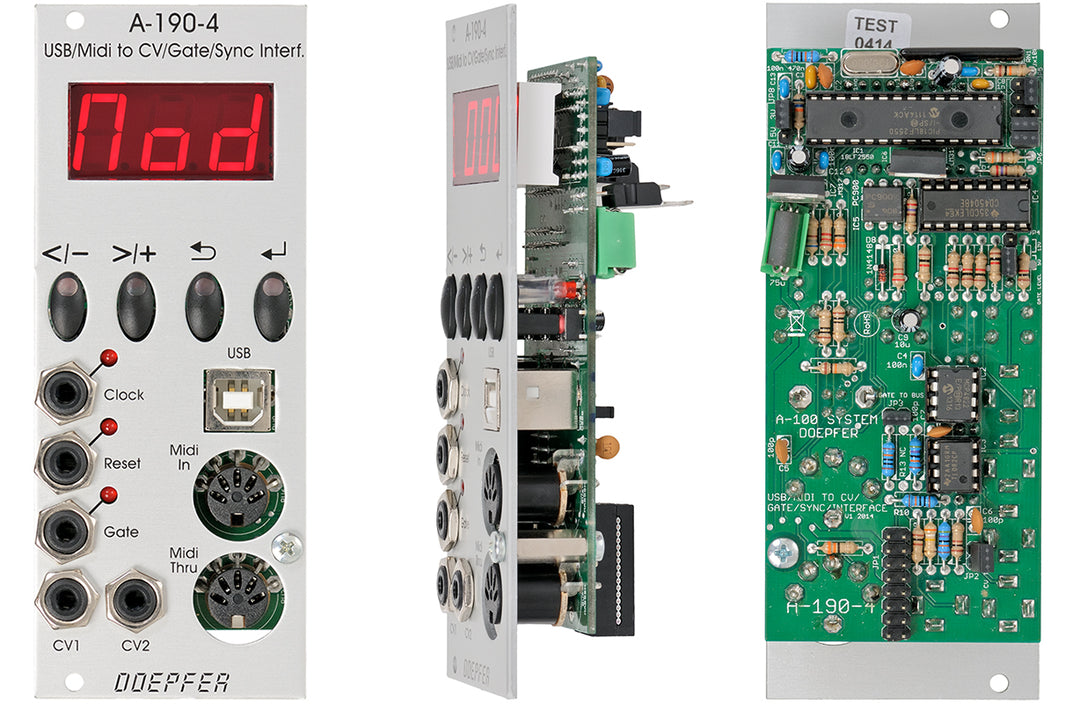

A-190-4 is the replacement for module A-190-1 which is no longer avaiulable. The functions of A-190-1 and A-190-4 are nearly the same (Midi In, Midi Out, CV1, CV2, Gate, Clock, Reset). But the operation of the A-190-4 has been improved because a 3-digit LED display is available. The current values of all parameters (like Midi channel, reference note, clock divider) can be read back and modified by means of up/down buttons. In addition A-190-4 is equipped with an USB interface and the external +5V supply is no longer available. Consequently the additional charges for the 5V adapter fall away.

The module width is the same for A-190-1 and A-190-4. In the A-100 basic systems the A-190-1 will be replaced by the A-190-4 from about May 2014.

A detailed description of the module will follow soon.

For more detailed information please look at the user's guide: A190_4_man.pdf

Width: 10 HP / 50.5 mm
Depth: 30 mm (measured from the rear side of the front panel)
Current: 200 mA
