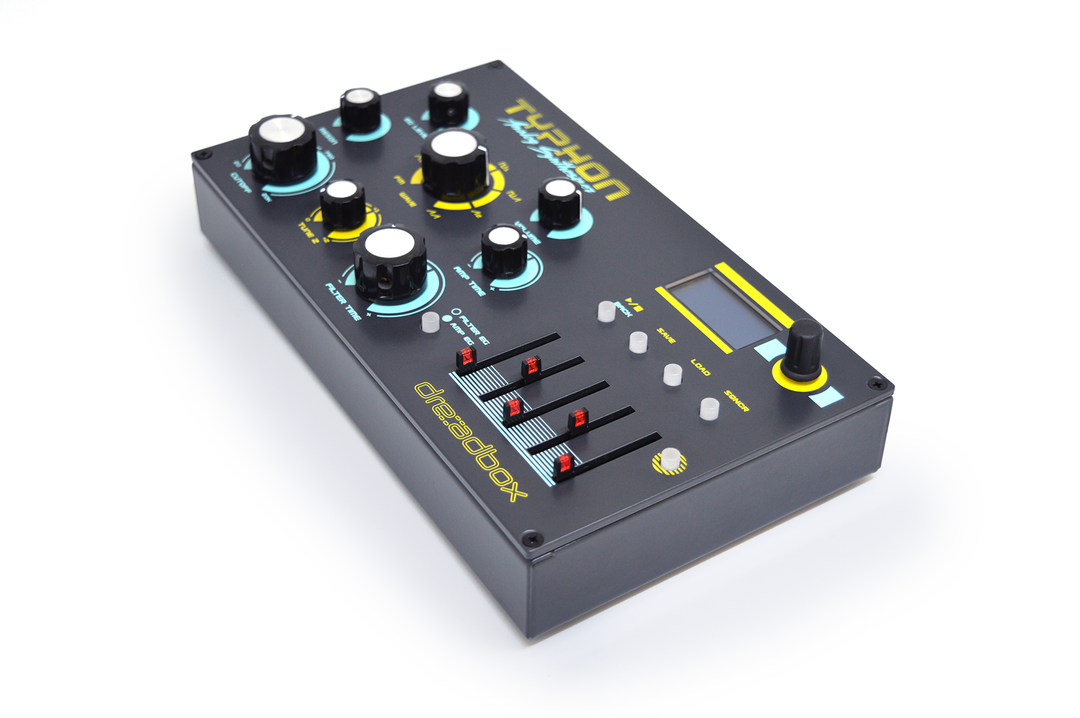

The Dreadbox Typhon is a monophonic portable and affordable desktop Analog Synthesizer complete with complex modulation routing, a 32 note sequencer, and powerful stereo effects. The classic Dreadbox analog sound from previous synthesizers like Erebus, Nyx, and Abyss is now available in a compact form factor with USB power.

The Design

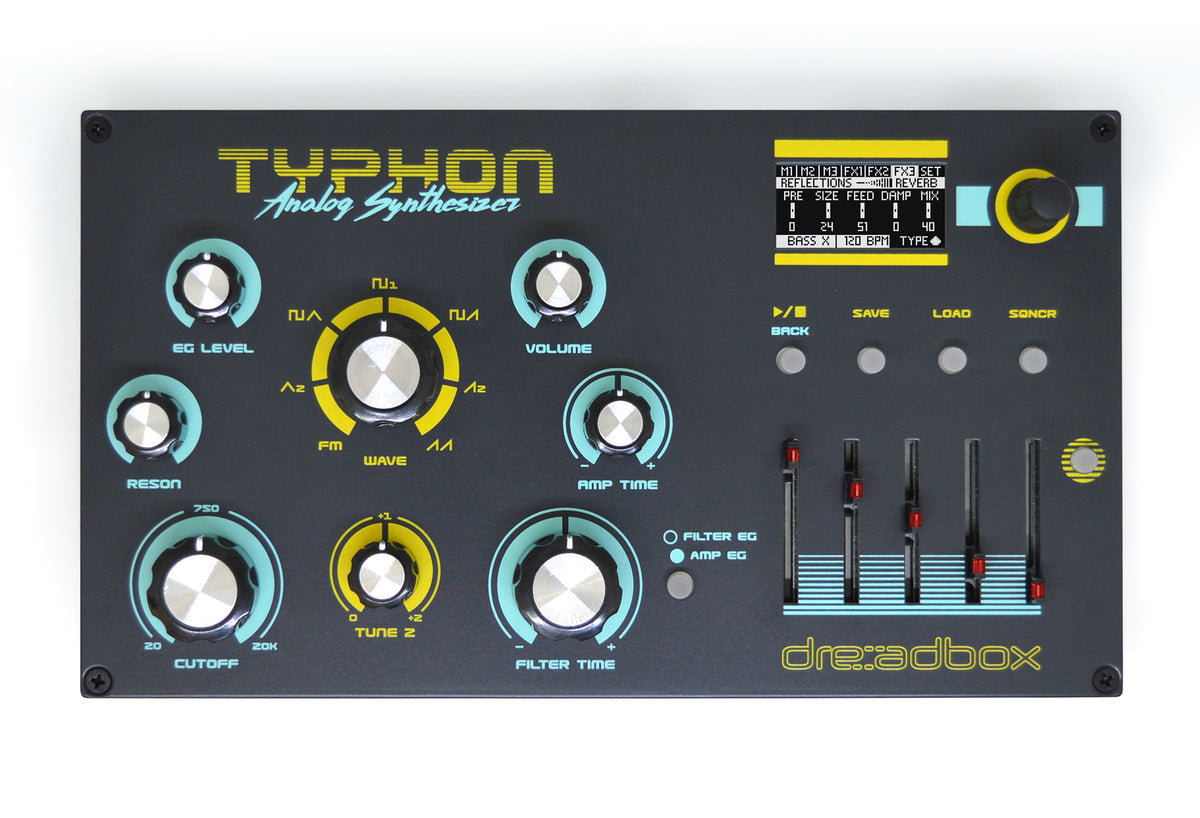

Proudly designed in Athens, Greece, Typhon boasts 2 Analog VCOs, Analog VCAs, and an Analog 24dB Low pass Filter. All analog components feature dedicated direct controls on the front panel.

Use the sliders, buttons, and encoder on the right side of the front panel to control Amp and Filter envelopes, the sequencer, the modulators, and the stereo effects to carefully craft (and save) your sounds! Typhon stores up to 254 presets. Save, Store, Rename, Download, and Exchange Presets with the free Dreadbox Software Editor!

The Modulators

Typhon features 3 independent modulators that can be routed to 13 different destinations. Control the pitch, filters, waveform, envelopes, amps, and effects, and unleash thousands of combinations to alter and shape your sound through modulation. Each modulator can use LFO’s, Envelopes, Random generators, or the sequencer as a source!

The Effects

Typhon is equipped with a set of powerful DSP effects programmed by Sinevibes. The DSP engine runs at a 32 bit 96kHz for high quality stereo effects. Choose between 3 FX on each preset to precisely dial in the tone and vibe of your patch.

FX1 is dedicated to distortion algorithms. Choose between 6 different algorithms for Distortion, Bitcrushing, and FM sounds.
FX2 is dedicated to Chorus, Ensemble, and Flanging effects
FX3 is dedicated to lush sounding Reverb and 2 Delay types

The Sequencer

Typhon features an on-board 32 note sequencer that can be used to sequence notes in the traditional way or used as a modulation source.

Each step of the sequencer will store Note, Velocity, Octave, Gate, and Probability trigger information, The Length,Swing, and BPM division of the sequencer are also all fully adjustable.

Feature List

2 analog VCO’s
An analog 24db/octave resonating Low pass filter

Analog VCA’s
2 x Envelope generators for the filter and the amp
3 x Modulators that can be either an LFO, envelope, random or step sequencer 32 bit @ 96kHz Stereo DSP effects coded by Sinevibes
5 Different distortions
Bit crusher
3 x Enhancer effects (chorus, ensemble, flanger)
2 different delay types
Reverb
32 note sequencer
254 presets
Extended Midi implementation (via DIN5 or USB)
External audio input can turn this box into the ultimate effects unit
Manage and exchange presets with a free provided software

Connections and Build Quality

Durable Aluminum Enclosure
USB powered (at least 500mA)
60 Playing hours with 20,000mA portable power bank MIDI Din IN and OUT
1⁄4 in Stereo Out
1⁄8 in Headphone Out
1⁄8 in Audio In (for routing via Typhon FX)
Made in Greece/EU
