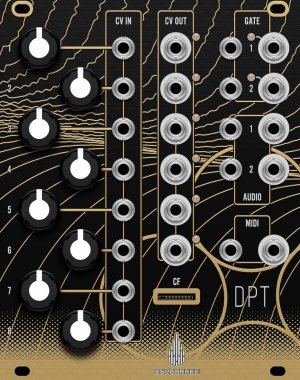

Multifunction Electron Temple

Our custom everything-including-kitchen-sink dsp development platform

At the core of this is an Electrosmith Daisy Patch Submodule, combined with a 12-bit 4 channel SPI DAC [DAC7554], and supporting hardware for more IO

Features
- 8x pots normalled to +5V
- 8x CV in breaks normalled connection and pot acts as an attenuator
- 2x gate in
- 2x gate out
- High-fidelity stereo in/out (Daisy Patch Submodule, using an WM8731 codec)
- 2x 12-bit CV out from Daisy Patch Submodule, scaled to -5v to 10v
- 4x 12-bit CV (or lofi audio w/ some hacking) from external DAC7554, scaled to -7v to 7v
- TRS MIDI in/out (in is auto-sensing for type a/b)
- SD card slot
- Expansion header for +5v, +3v3, SPI, UART, I2C, and USB connections
