EOWAVE ORAGE MKII

EOWAVE ORAGE MKII

EOWAVE ORAGE MKII

Regular price $269.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

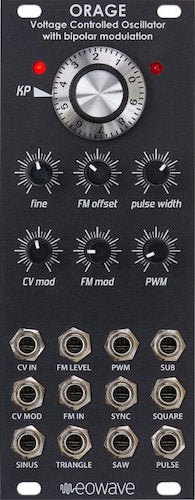

The Orage is a triangle core based voltage controlled oscillator which enables different modulation types from thru zero FM synthesis, linear as well as exponential modulations, pulsewidth modulation to phase inversion modulation.

There are 5 individual outputs for sine, triangle, saw, pulse, square waveforms. Additionally it offers a sub out.

It also has a sync input to synchronise two Orage modules.

Dimensions
10 HP
40 mm deep
Current Draw
25 mA +12V
25 mA -12V
