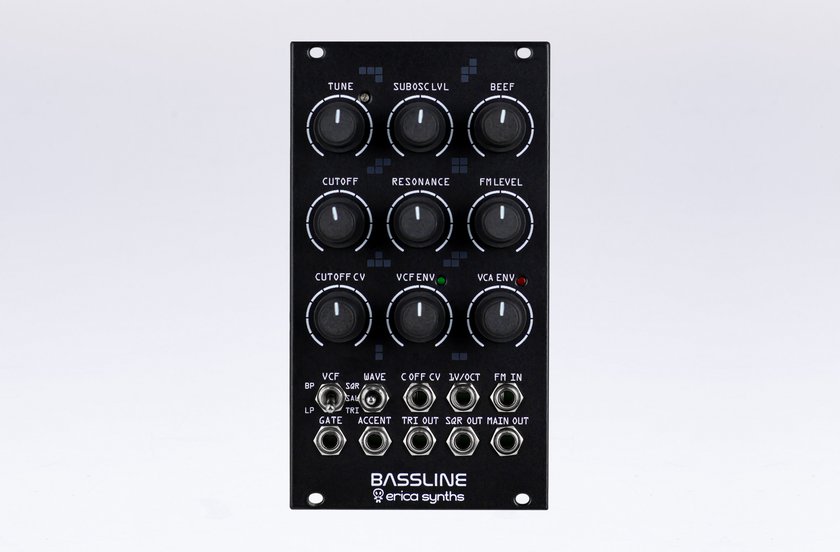

Erica Synths Bassline is fully analogue synth voice module for ultimate basslines and leads. It features AS3340 VCO with three waveforms, a filter inspired by Erica Synths Acidbox and unique features - transistor based suboscillator and two BBD lines that emulate VCO detune creating a sound of massive polysynth from one oscillator. Accent provides more expression to the bassline, by adding volume and opening the VCF slightly.
Features
- Fully analogue circuit
- Great 1V/oct tracking
- Simultaneous Triangle, Square and Master outputs
- Accent input
- Transistor-based suboscillator
- BBD-based VCO detune emulation
- Integrated VCF and VCA decay envelopes
- LP/BP VCF
- External VCO FM and VCF cutoff CV inputs
Pitch range |
C0-C8 |
Audio output level |
-5...+5V |
CV level (full span) |
-5V-+5V |
Power consumption |
+110mA, -70mA |
Module width |
14HP |
Module depth |
35mm |
