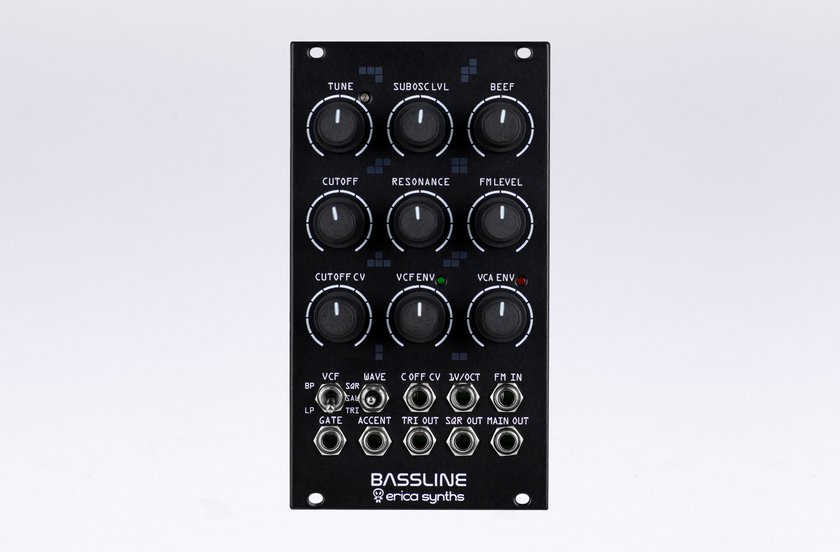

ERICA SYNTHS BASSLINE BLACK PCB+IC's+PANEL DIY KIT : DISCONTINUED
Erica Synths DIY Bassline is a fully analogue synth voice module for ultimate acid basslines. It features highly stable AS3340-based VCO with three wave-forms, a filter inspired by Erica Synths Acidbox and a unique feature - transistor based suboscillator. Accent provides more expression to the bassline by adding volume and slightly opening the VCF.
Features
- Full analogue circuit
- Great 1V/oct tracking
- Simultaneous Triangle, Square and Master outputs
- Accent
- Transistor-based suboscillator
- VCF and VCA decay envelopes
- LP/BP VCF
- External VCO FM and VCF cutoff CV inputs
This is a comparably complex DIY project for experienced builders. We do not recommend this for beginners and ones without proper soldering and testing equipment.
| Pitch range | C0-C8 |
| Audio output amplitude | 10Vptp |
| CV amplitude | -5V -+ 5V |
| Panel width | 16HP |
| Module depth | 45mm |
| Power consumption | 80mA @+12V 40mA @-12V |
Manuals
-
User manual — July 24, 2018
-
BOM — July 23, 2018
Downloads
-
Assembly — July 23, 2018
