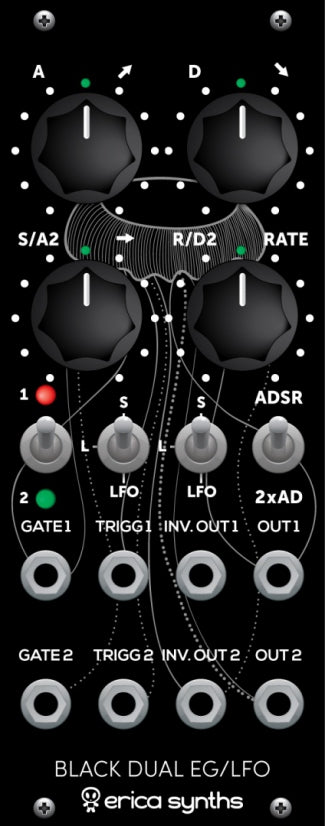

Two full ADSR EGs, two unique LFOs with plenty of features just in 10HP!
We managed to put two full ADSR envelope generators, you can adjust one by one or two simultaneous AD/ASR envelope generators and unique, not seen before functionality LFO in just 10HP! This saves a lot of rack space, you can use for other Black Series modules!
Features:
- 2xADSR envelope or 2xASR envelope
- 2xLFO
- Draw your own LFO shape!
- Gate and Trigger inputs
- Direct and Inverter outputs
- Long/Short EG switch
- Full ADSR looping
- LFO key follow function
- Each step activity indication LEDs
- Diode protection on reversed power supply
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.
Technical specifications:
|
EG Output signal level
|
0 – +10V
|
|
LFO output signal level
|
-5V – +5V
|
|
LFO rate
|
0,2Hz – 30Hz
|
|
Sustain level
|
0 – +10V
|
|
Max Attack time
|
0,125’’(S), 2’’(L)
|
|
Max Decay time
|
0,125’’(S), 1’’(L)
|
|
Max Release time
|
0,350’’(S), 5’’(L)
|
|
Power consumption
|
+25mA, -15mA
|
|
Module width
|
10HP
|
|
Module depth
|
25mm
|
