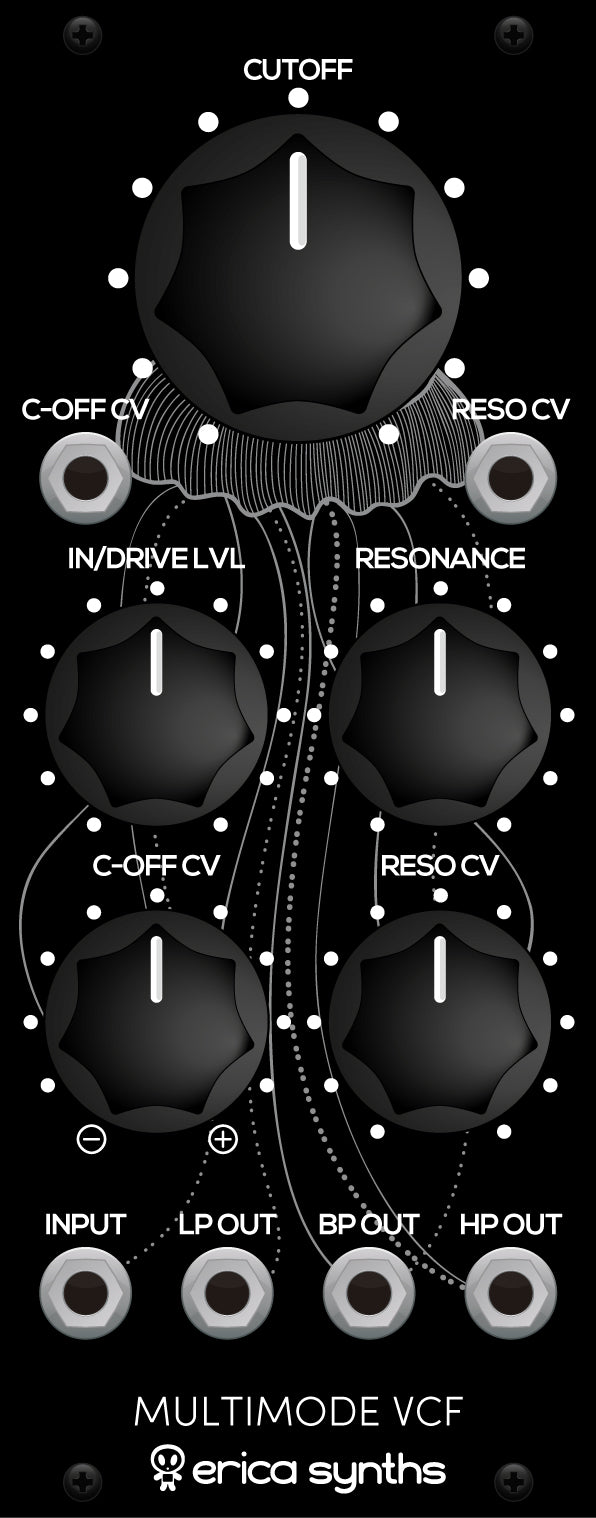

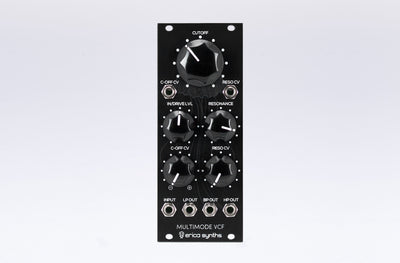

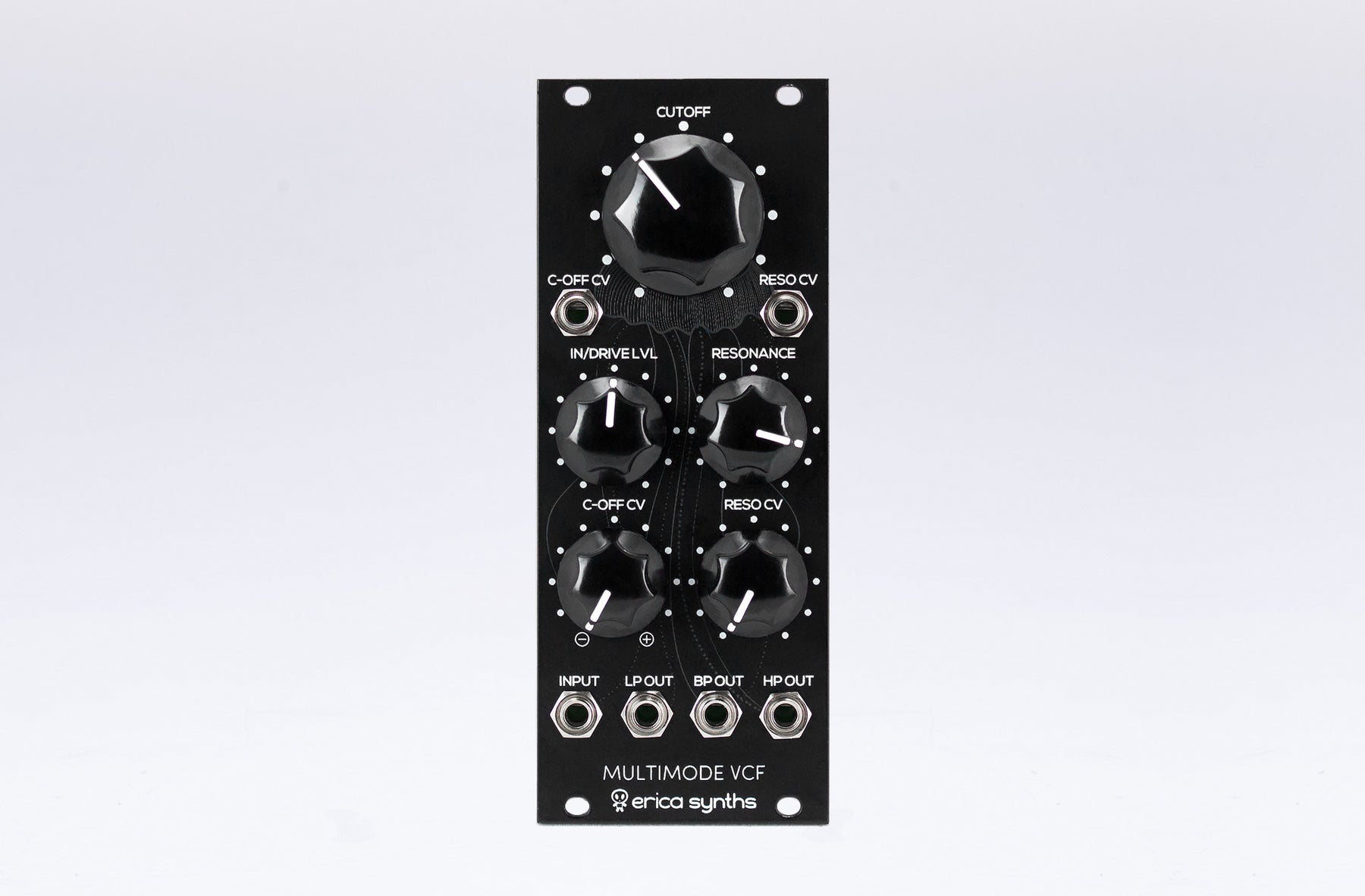

ERICA SYNTHS BLACK MULTIMODE VCF

ERICA SYNTHS BLACK MULTIMODE VCF
ERICA SYNTHS BLACK MULTIMODE VCF

ERICA SYNTHS BLACK MULTIMODE VCF

Regular price $219.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

The Erica Black Multimode VCF has simultaneous HP, BP and LP outputs, CV control over cutoff and resonance for serious modular patches.



The core of the VCF is highly stable, custom multimode VCF chip AS3320 (produced in Riga, btw). Bonus feature – unique, adjustable germanium diode overdrive circuit on the VCF input.

   Features:

  • Simultaneous HP, BP and LP outputs
  • CV control over Cutoff and Resonance
  • Self-oscillation
  • Cutoff CV level attenuverter
  • Adjustable germanium diode overdrive
  • Skiff-friendly design


Technical specifications:

Audio output amplitude

10 Vptp

CV input (full sweep)

10 Vptp

Panel width

10HP

Module depth

35mm

Power consumption

27mA@+12V, 29mA@-12V





Erica Black Multimode VCF on Modulargrid
