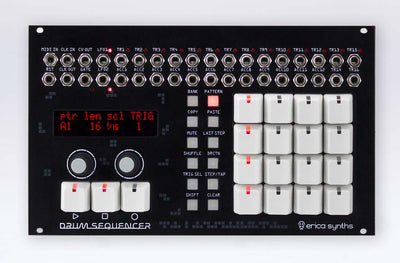

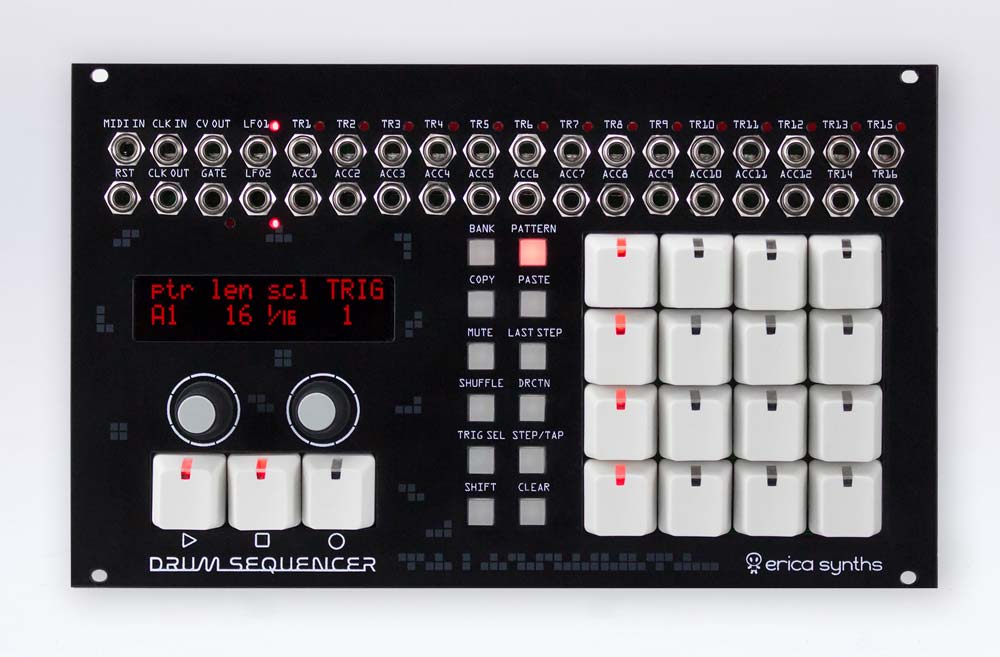

ERICA SYNTHS DRUM SEQUENCER
The Drum Sequencer is easy to use, classical X0X style live performance oriented sequencer module that provides the ultimate control over your system. Erica Synths Drum Sequencer might be the last modular sequencer for drums and basslines you will ever have to buy!
Features
- 16x trigger outputs
- 12x accent outs
- 1x CV track with scales
- 1x Gate track
- 2x LFO with independent or synced to the BPM frequency
- LFO attenuation per out
- Max pattern length = 64 steps
- Time signature per Track
- Direction per track/pattern
- Pattern length per Track
- Shuffle per track
- Probability per step
- Retrigger per step
- Time shift per step
- Instant pattern switching
- Solo/Mute tracks
- Step/Tap record modes
- 8 Banks of 16 Patterns
- Quick Copy/Paste per tracks & patterns
- Pattern linking
- Song mode
- MIDI sync in with Start/Stop
- External 4PPQ clock in
- Firmware upgrade via MIDI SysEx
Specifications and appearance are subject to change without notice for improvement.
Technical specifications
| Trigger amplitude | 5V |
| Panel Width | 42 HP |
| Module depth | 30mm |
| Power consumption | 152mA@+12V, 56mA@-12V |
Manuals
-
Manual add on V 1.043 — Nov. 8, 2018
-
Manual add on V 1.038 — Sept. 27, 2018
-
User manual Japanese — June 14, 2018
-
User manual — June 14, 2018
