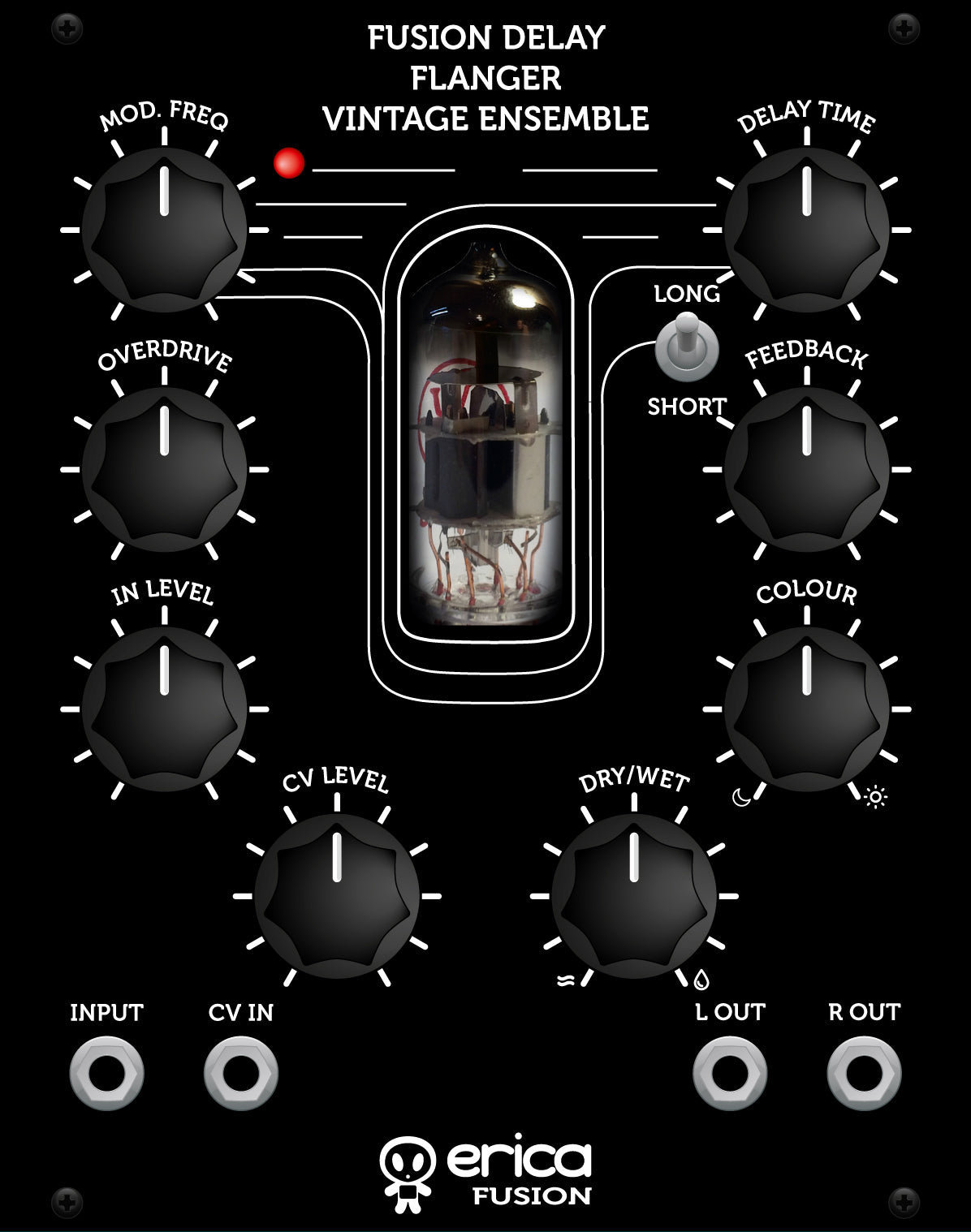

Erica Synths Fusion Delay/Flanger/Vintage Ensemble module is distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and feedback path for extra thickness of sound.
For more flexibility, lowpass filtering is fully adjustable from none to extreme. Special feature, not found in eurorack, is Vintage Stereo Ensemble – effect that’s common on vintage synthesizers to create moving and thick spatial sound from a monaural tone generator, be it FM, DCO or any other kind. Such a spatial effect is achieved by mixing dry source with delayed and lowpass filtered out of phase signal.
All Fusion modules by default are configured to work with regular eurorack PSU.
Technical specifications:
Audio input signal level
|
up to 20V ptp
|
Max delay time SHORT setting
|
20ms
|
Max delay time LONG setting
|
200ms |
LFO range
|
0.1Hz – 30Hz |
Power supply
|
bipolar +-12V , eurorack standard and Erica Synths 6VAC PSU
|
Power consumption
|
Tube heater PSU configuration: 35mA@+12V, 20mA@-12V, 300mA@6VAC
Eurorack PSU configuration: 35mA@+12V, 170mA@-12V
(NB – start-up power consuption for few seconds is -250mA)
|
Module width
|
20HP
|
Module depth
|
35mm
|
