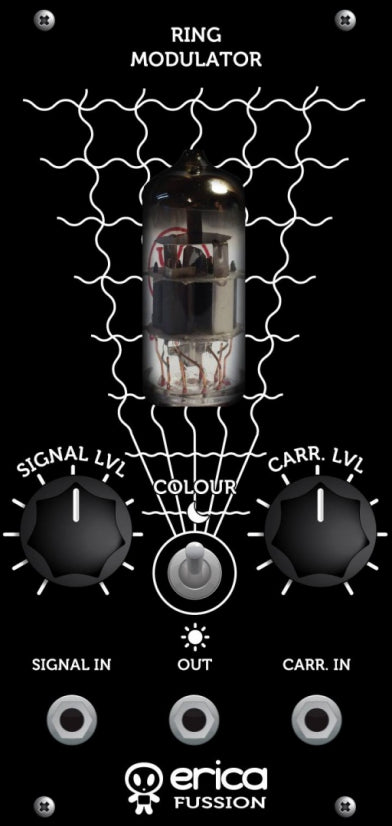

Erica Fusion Ring Modulator – a classic design ring modulator with germanium diode ring + vacuum tube to boost and shape audio and carrier signals.
Germanium diodes enrich the sound by adding extra harmonic content meanwhile vacuum tube adds evilish overdrive to audio and carrier signals. As result you get one of most versatile ringmodulators around!
Features:
Technical specifications:
Input signal level
|
up to 20V ptp
|
Output signal level
|
10V ptp
|
Power supply
|
bipolar +-12V , eurorack standard and Erica Synths 6VAC PSU
|
Power consumption
|
Tube heater PSU configuration: 10mA@+12V, 10mA@-12V, 300mA@6VAC
Eurorack PSU configuration: 160mA@+12V, 10mA@-12V
|
Module width
|
12HP
|
Module depth
|
35mm
|
