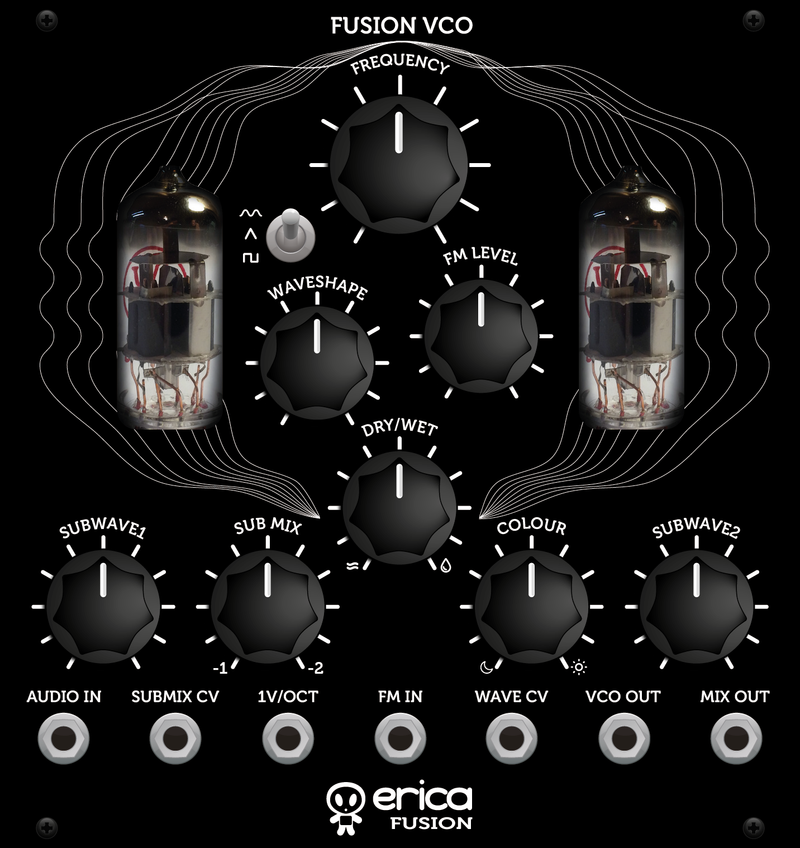

Erica Synths Fusion VCO is special kind of VCO – it fuses great tuning of digital VCO with warm, unique sound of vacuum tubes that work in suboscillator circuit.
Two double triodes in bistable latch connection act as suboscillators: -1 and -2 octaves with plenty of mixing opportunities for amazing sonic results. External audio signal can replace internal VCO. If you wish to go really low frequencies and have a sound that sets your modular system apart from mass – this is exactly module, you need!
All Fusion modules by default are configured to work with regular eurorack PSU.
Features:
-
3 basic waveforms (sine, triangle and pulse) with VC morphing, for example, triangle morphs from sawtooth to ramp
-
Good 1V/oct tuning for 8 octaves
-
Vacuum tube based suboscillators -1 and -2 oct
-
Manual and CV controlled -1/-2 oct mixing
-
Adjustable suboscillator waveshape
-
Dry/Wet (VCO/suboscillators) mixing
-
Passive Lowpass filter for extreme subbass sound
-
Audio input
Technical specifications:
Audio input signal level
|
up to 20V ptp
|
Output signal level
|
10V ptp
|
VCO range
|
C1 – C8 |
Power supply
|
bipolar +-12V , eurorack standard and Erica Synths 6VAC PSU
|
Power consumption
|
Tube heater PSU configuration: 60mA@+12V, 30mA@-12V, 300mA@6VAC
Eurorack PSU configuration: 215mA@+12V, 185mA@-12V (NB – start-up power consuption for few seconds is +-250mA)
|
Module width
|
24HP
|
Module depth
|
35mm
|
