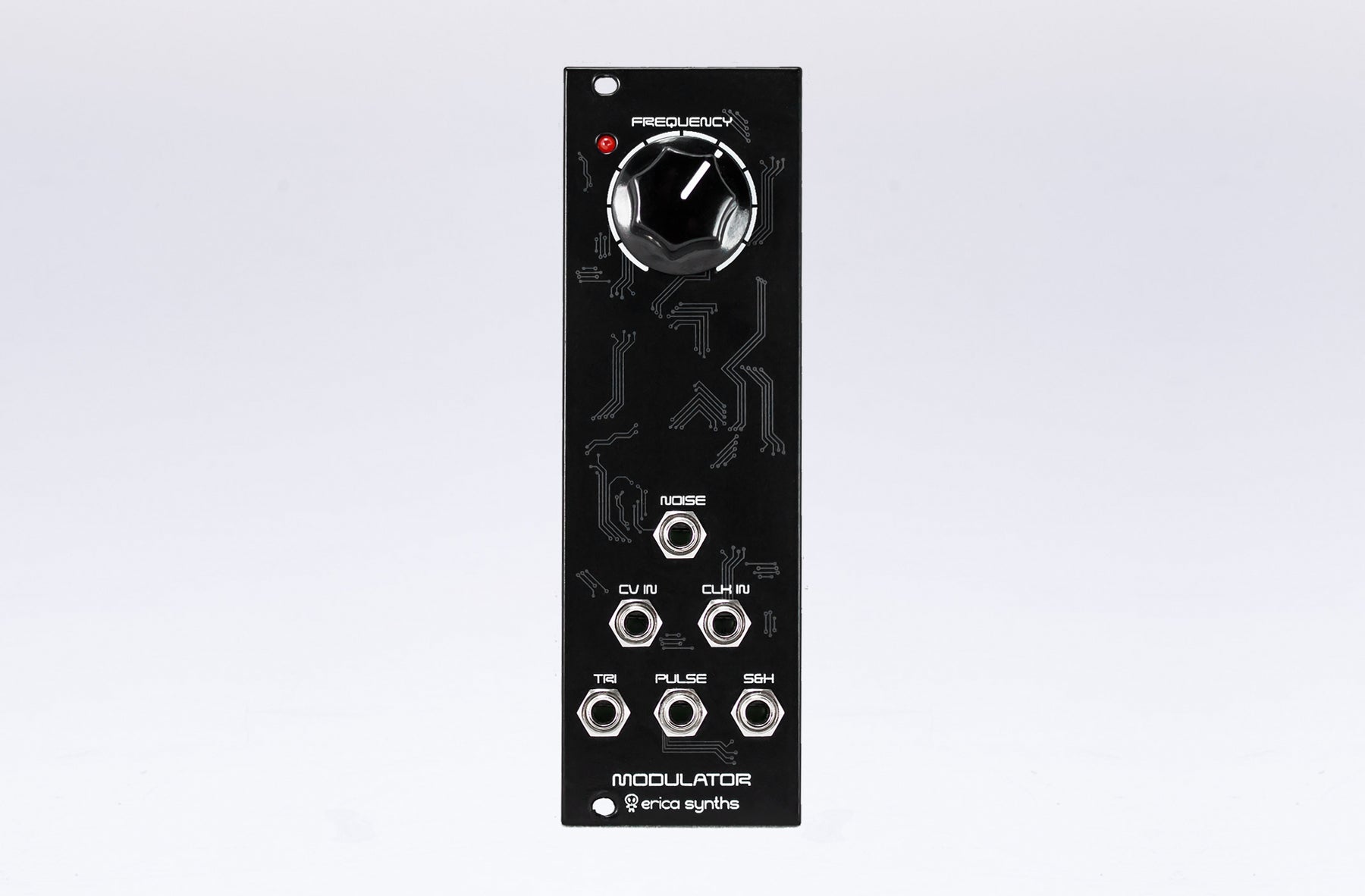

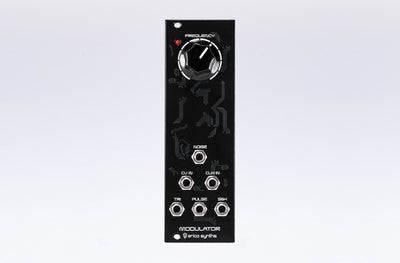

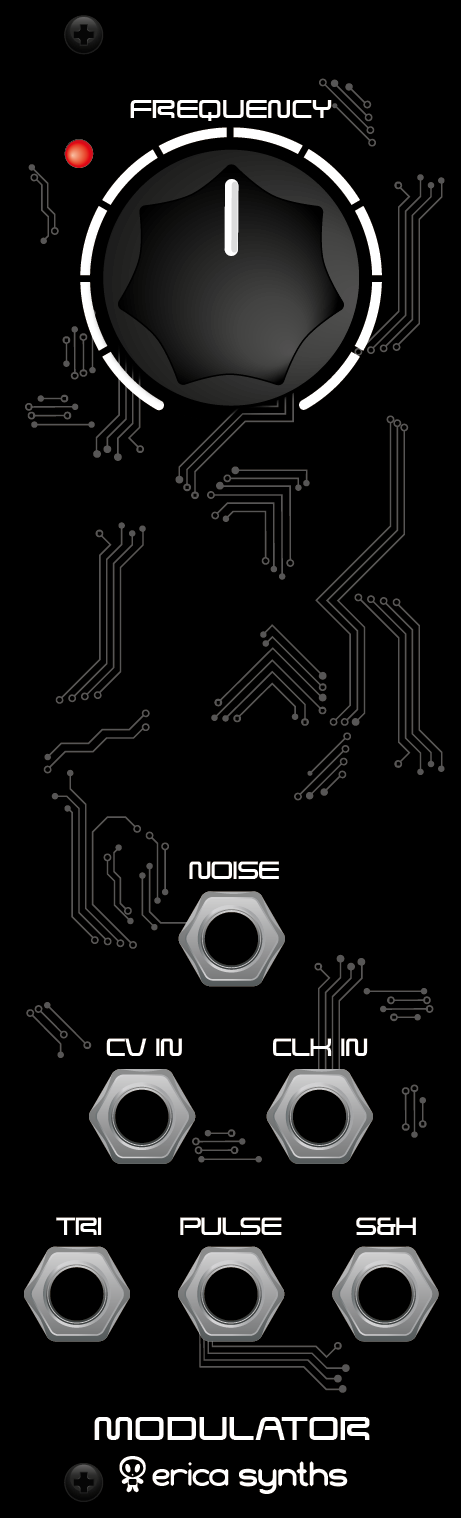

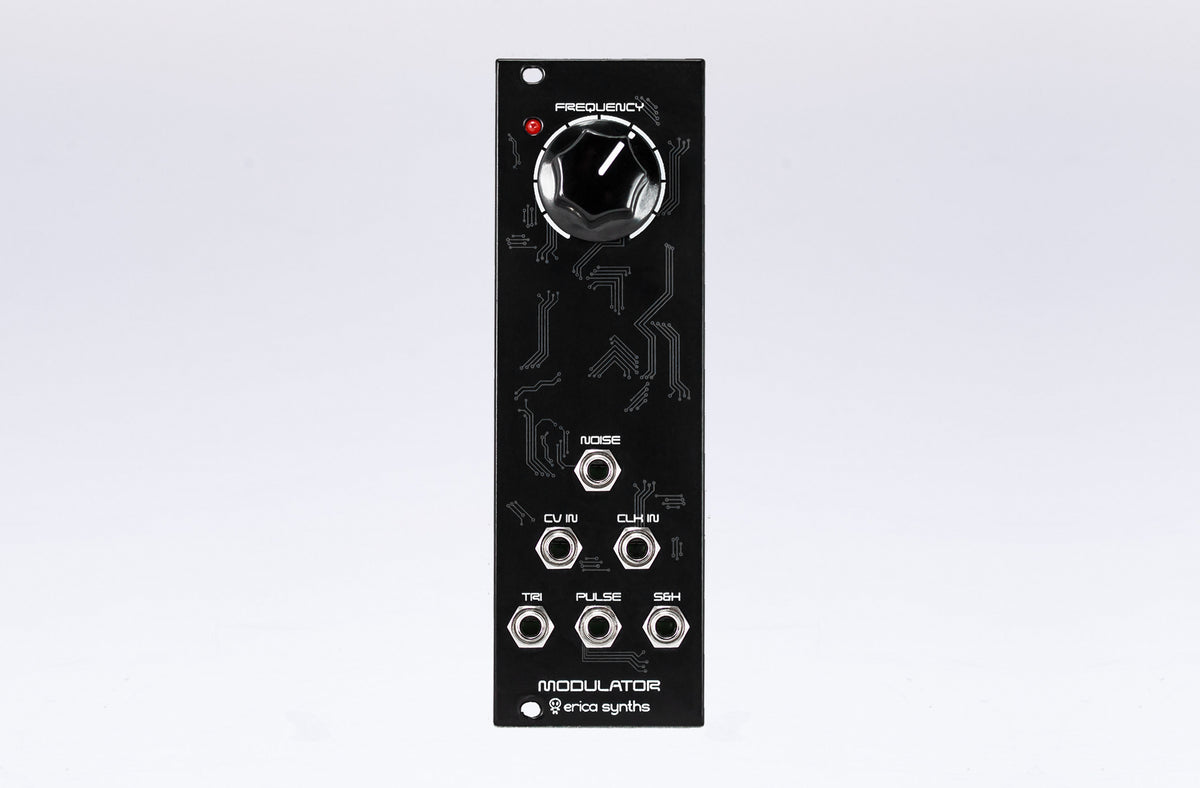

ERICA SYNTHS MODULATOR II DIY FULL KIT
Erica Synths DIY Modulator is 35mm deep, skiff friendly, has solid mechanical construction and doesn’t require wiring.
Features
- LFO with triangle and pulse wave outputs
- Choice of transistor-based or Zener diode-based noise generator for massive, full spectrum white noise
- S&H circuit based on rare, high quality S&H chip
- S&H CV and clock inputs
The Modulator essentially is an LFO with simultaneous triangle and square wave outputs, clockable S&H with external CV input and noise source. A kit comes with two versions of noise generator – simple, transistor-based and more complex Zener diode-based one. The latest provides perfect, full spectrum white noise.
Technical specifications:
|
LFO output amplitude |
-5V…+5V |
|
LFO frequency range |
0,1…20Hz (configurable) |
|
Noise output level |
10Vptp |
|
S&H CV input level |
up to 20Vptp |
|
Panel width |
8HP |
|
Module depth |
35mm |
|
Power consumption |
27mA@+12V, 22mA@-12V |
