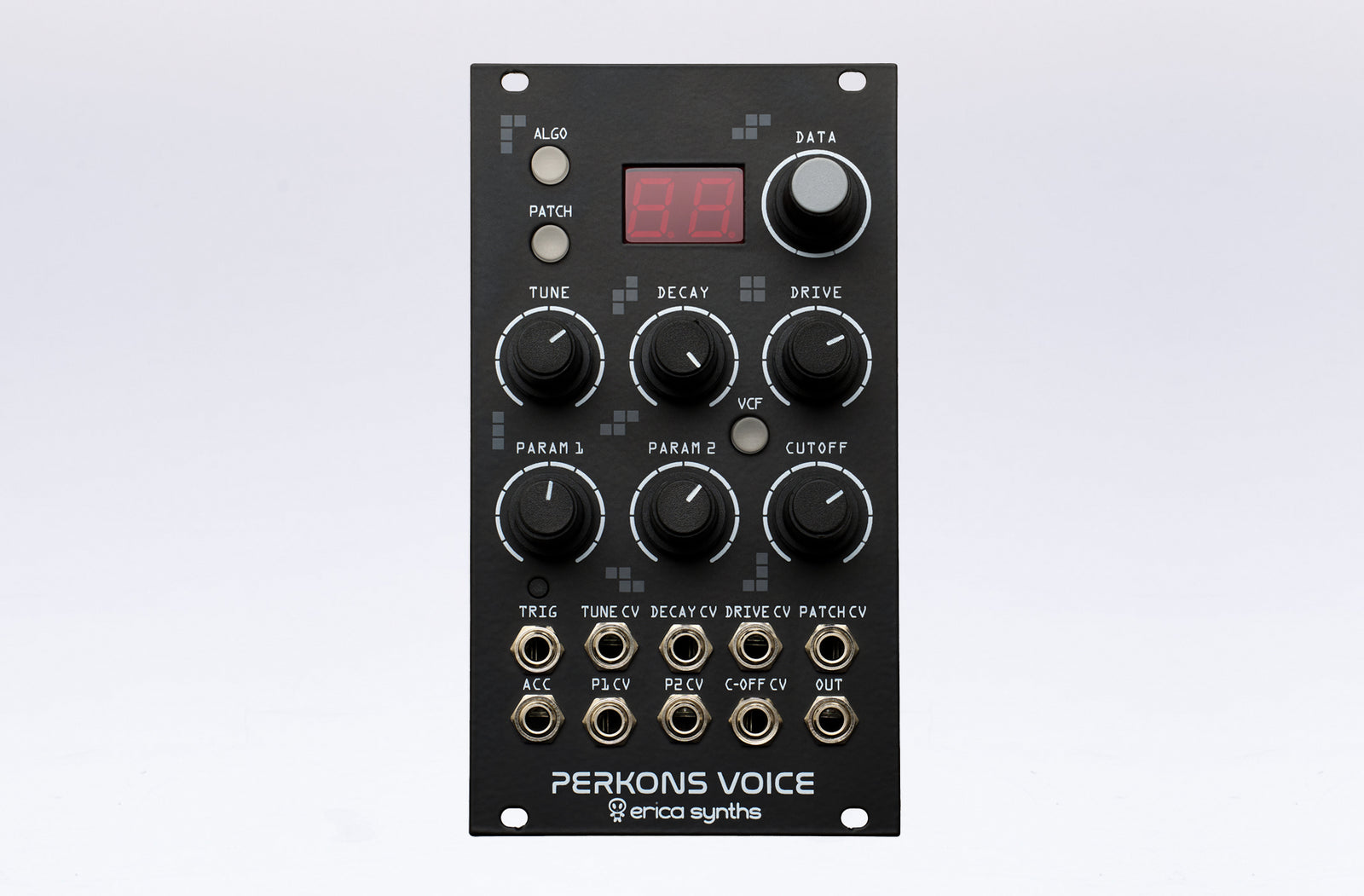

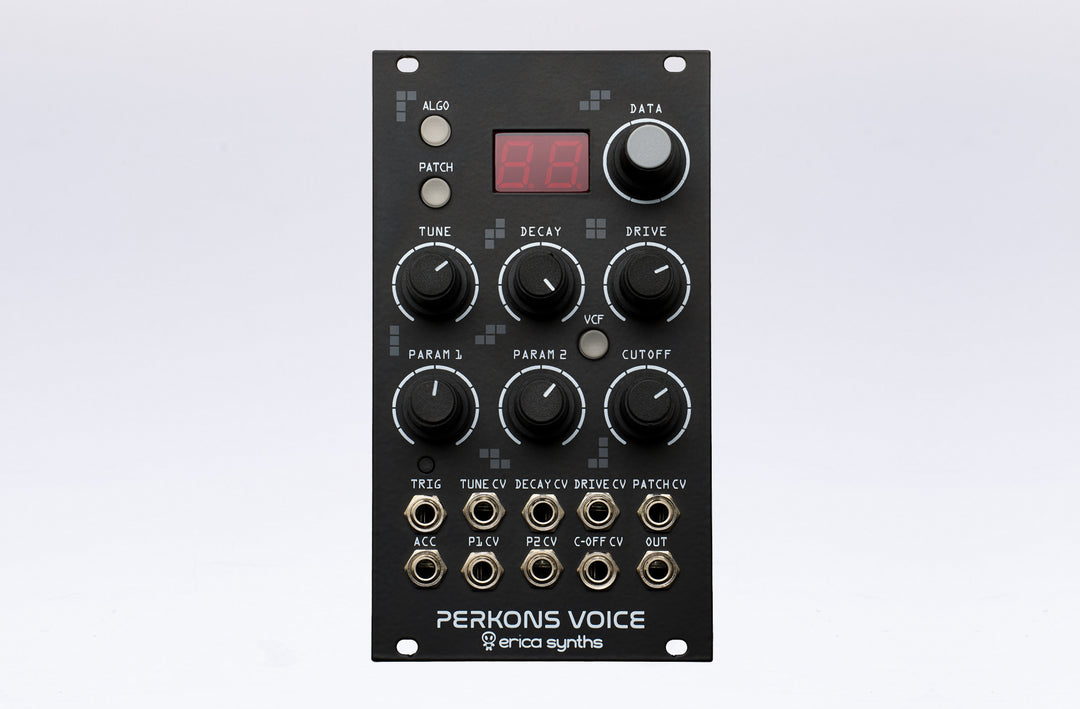

ERICA SYNTHS PERKONS VOICE

Erica Synths Perkons Voice is a eurorack incarnation of the percussion voices from the PERKONS HD-01 Drum machine. Like on the drum machine, the module has hybrid architecture, featuring a digital sound engine followed by an analogue multimode filter and overdrive. Users can select among 13 sound generation algorithms and save up to 99 presets that can be recalled easily. Tune and Patch CV inputs are configurable for various CV settings and are tuned to 1V/oct. Module also features a 4-voice poly overlap mode and samples on the "Rompler" engine can be easily replaced.

Specifications:

Audio output	10Vptp
CV levels	configurable -5V - +5V
Power consumption	+59mA, -30mA
Module width	14HP
Module depth	35mm
