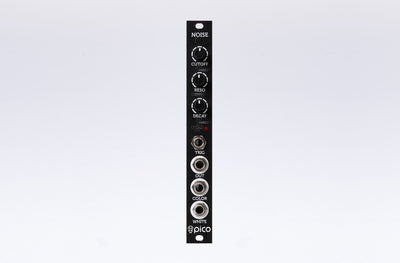

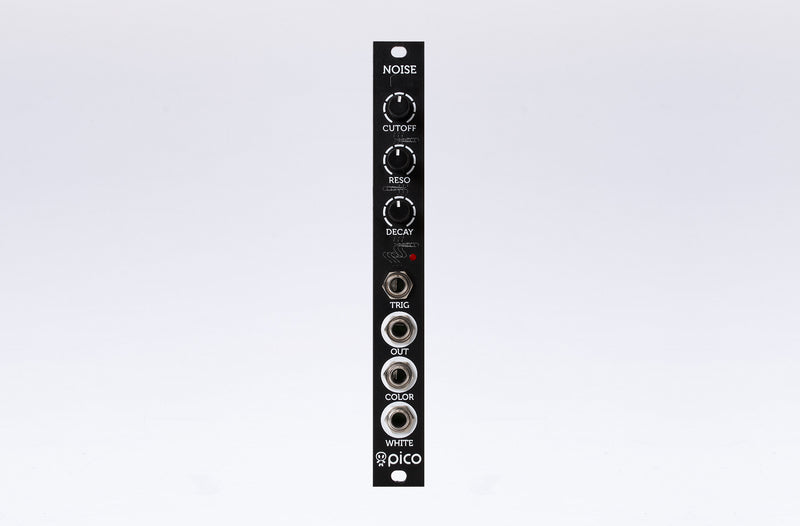

Pico NOISE is a versatile noise and percussion sounds source. It consists of white a noise generator, a resonant VCF to generate various colours of the noise – from extremely dark ones to high pitched resonant sweeps and a VCA/decay envelope generator combination to create range of percussion sounds to emulate hi-hats, cymbals and even sine tone-based percussions, when the resonance is full up.
Technical specifications:
| Output amplitude |
-5V — +5V |
| Max decay time |
350ms |
| Power consumption |
+27mA, -25mA |
| Module width |
3HP |
| Module depth |
35mm |
