EROGENOUS TONES VC8

EROGENOUS TONES VC8

EROGENOUS TONES VC8

Regular price $319.00
/
  • Free shipping over $99 to most states
  • Easy returns
  • Secure payments
  • In Stock

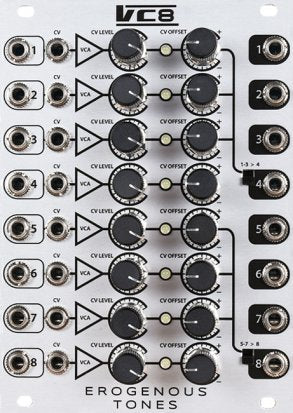

VC8 is a high density VCA module designed to give you a large number of VCAs with CV LEVEL and OFFSET control, along with optional VCA controlled sub-mix capability.

Overall Features:

-8 channels of linear VCA
-Each channel has a CV LEVEL attenuator
-Each channel has a CV OFFSET control that can add positive or negative bias to the CV LEVEL
-White LED indicates CV LEVEL after OFFSET applied
-Output sub-mix configuration can be engaged on 2 channels
-Channel 4 sub-mix engaged will receive VCA channels 1-3 and be controlled by VCA 4
-Channel 8 sub-mix engaged with receive VCA channels 5-7 and be controlled by VCA 8
-Channels 1,2,3,5,6,7 still provide straight through VCA signal regardless of sub-mix setting
-Aluminum knobs with knurled edge for easy manipulation
-Skiff Friendly (Very shallow)

http://erogenous-tones.com/modules/vc8/

  • 18 HP
  • 80 mA +12V
  • 70 mA -12V
  • 0 mA 5V
