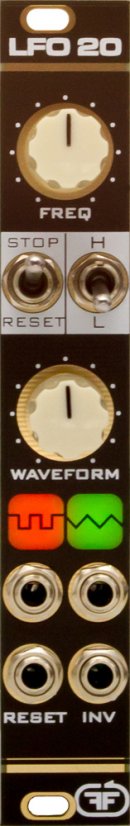

This is the easy to use but versatile LFO your modular synth will love :) :) :)
It is a great compromise between simplicity, user friendliness and enough features to make it special.

The main feature of this LFO is the WAVEFORM knob that will change progressively the shape of the
waveforms:
- at the TRIANGLE output from SAW (CCW) to TRIANGLE (center position) to RAMP (CW)
- at the PULSE output from 5% (CCW) to 50% SQUARE WAVE (center position) to 95% (CW)

In addition to this we added a reversed output for the Triangle sections, so you can for example close
a VCF in the same time you open a VCF, adjusting the Frequency.

Another main feature is a reset/gate input. If the first switch is in reset position, any trigger or gate will reset
the cycle of LFO.
If the first switch is in Stop position, any gate will stop the lfo.

Tech specs:
- 4HP width
- 35mm depth behind front panel including the power connector
- 2X control pots for FREQUENCY and WAVEFORM
- 1X FREQUENCY RANGE switch: LOW and HIGH
LOW - 4,7mHz (210sec/3.5min) - 0,625Hz (1.4sec)
HIGH - 183mHz (6sec) - 25Hz (40msec)
- 1X MODE switch : STOP and RESET
- 1X input jack : RESET
- 2X outputs : SQUARE 0/10V Vpp and TRIANGLE -5V/5V Vpp
- standard 10 pin euro power +12V / -12V
- power consumption +12V 20mA , -12V 15mA
