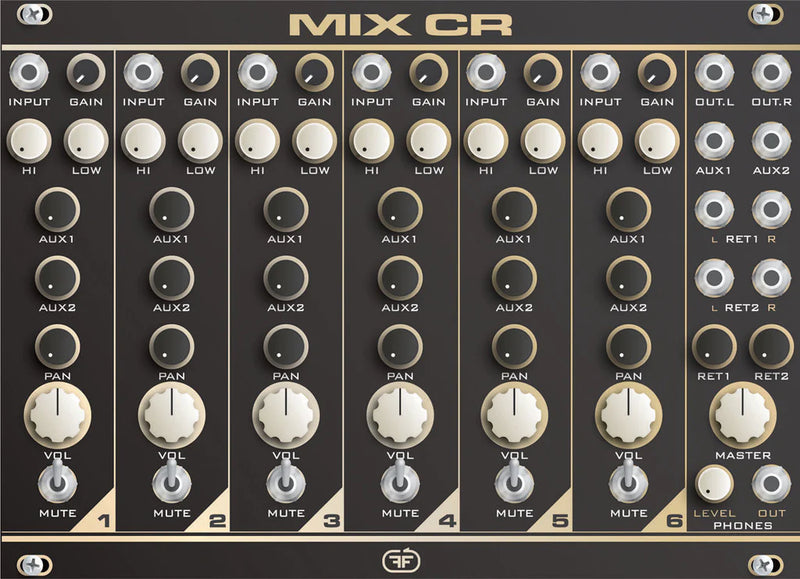

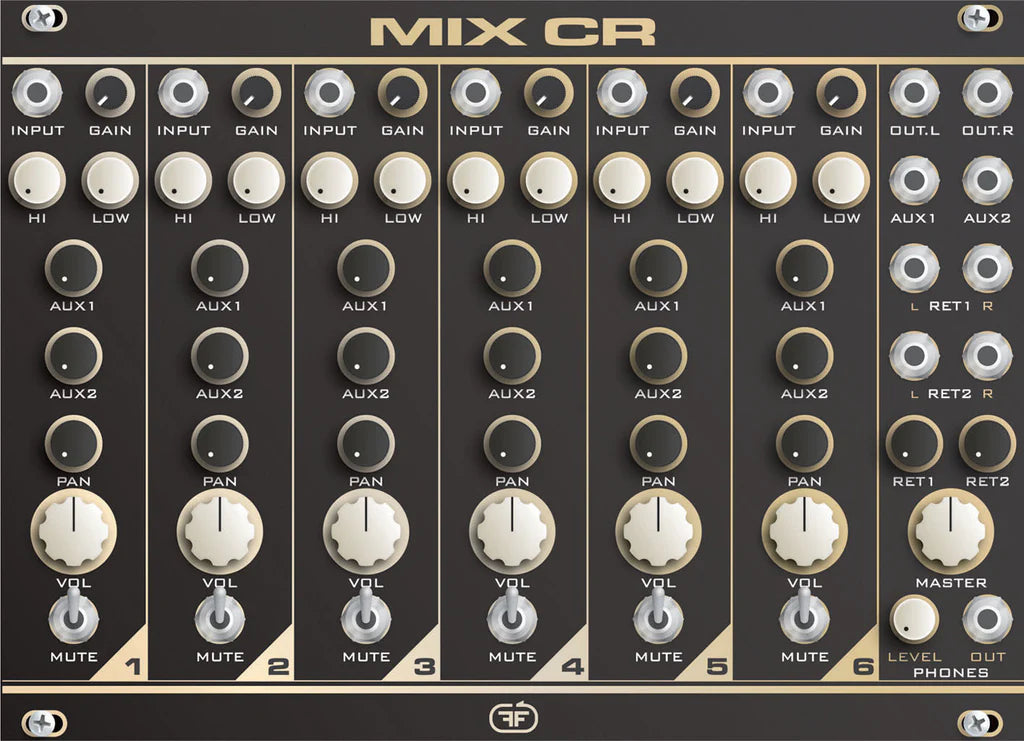

The MIX CR is a 6-channel mixer module that’s based upon the classic Mackie CR mixer that was favoured by electronic artists such as The Prodigy.

As probably many of you know the MIX CR (like our PRE CR channel strip) is based on a famous late eighties small mixer used mostly for the well known TB303 distortion sound.

Tech specs:
- 35HP front panel
- 35mm depth behind front panel including the power connector
- 6 mono input jacks ( 1 per channel)
- Pot controls for channels : Gain, Hi, Low, Aux1 send, Aux2 send, Pan, Volume
- 6 mute switches (1 per channel)
- Pot controls for master : Master Level, Headphone Level, Aux1 Return, Aux2 Return
- 2 x mono aux send jacks
- 4 mono input jacks for two stereo Aux returns
- 2 jacks for master left and right out
- one 3.5mm stereo jack for headphone out
- boxed 10 pin euro power (+12V / -12V)
