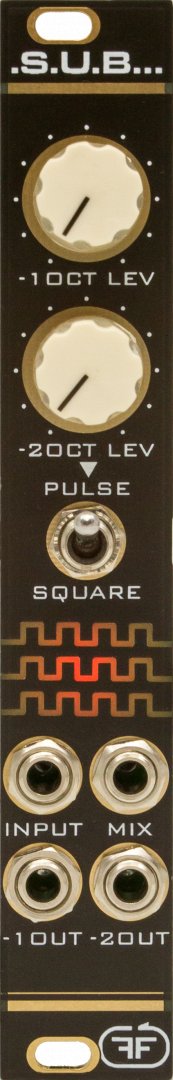

As the name suggests this module can produce sub frequencies of -1 and -2 octaves relative to the square wave signal provided at the input jack.

But this is not just a simple SUB generator. It also has a little mixer that will let you add different levels of -1 and -2 octave signals to the original square wave. You can select the -2 octave signal to be a square wave or a pulse wave.

The module has individual outputs for the mixed signal, the -1 octave and the -2 octave.
This little modules can produce enough timbral variation to make you bass sound exciting.

Tech specs:

- 4HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 12mA , -12V 9mA
