Expander for Vector Sequencer

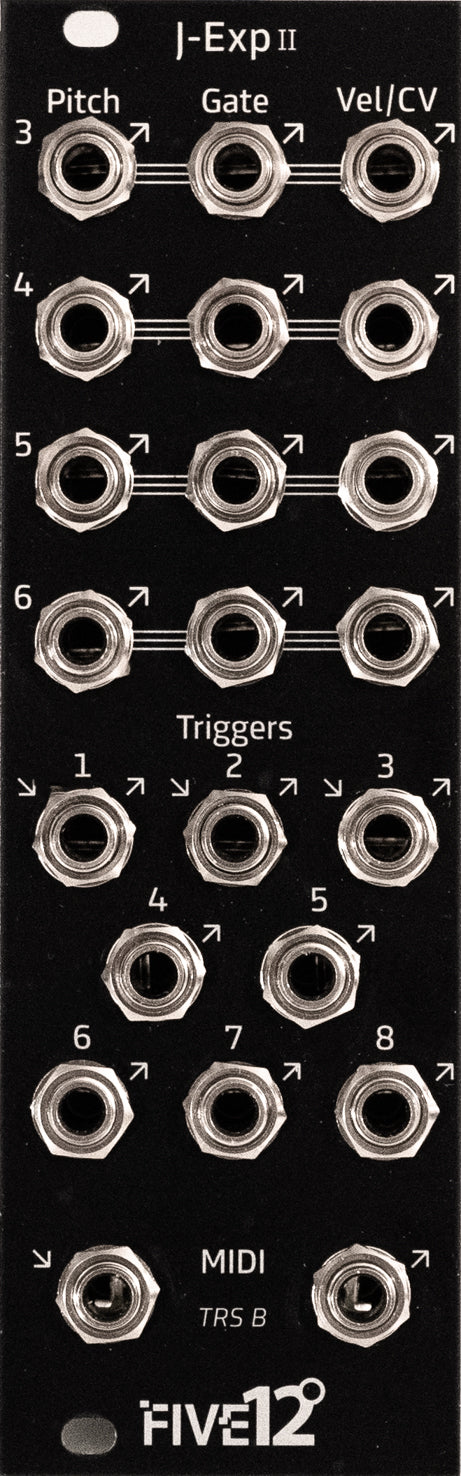

The Jack Expander MkII adds more ins and outs for your Vector Sequencer. It currently works with the MkII sequencer and pending a firmware update, will work with the MkI as well.

The Jack Expander adds many useful connections to the Vector Sequencer, including 4 full sets of Pitch, Gate and Velocity outputs. A notable change for the MkII version of the Expander is that the MIDI DIN connectors have been replaced by 3.5mm TRS jacks, which saves 4 hp overall. The MkII Expander includes two DIN MIDI adapter cables.

The DACs for Velocity outputs have been upgraded and can now be used for Pitch and Gate outputs. With the additional pitch CV output options, the Vector MKII can now control up to 12 voices.

Features:

MIDI TRS input and output (Type-B adapter included)
4 Part outputs with pitch, gate and velocity/CV
3 Reversible Trigger jacks (input or output).
5 Trigger outputs
Velocity output can also be used for pitch.

Dimensions
8 HP
Current Draw
30 mA +12V
25 mA -12V
0 mA 5V
