FLAME C-1U KNOB RECORDER

FLAME C-1U KNOB RECORDER

FLAME C-1U KNOB RECORDER

Regular price $119.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

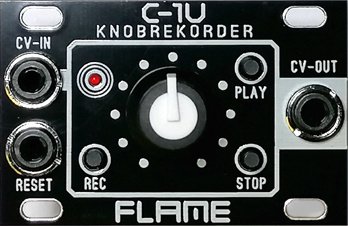

The C-1U module is a one-channel module for recording and playing back movements of controller. Those can be recorded with channel´s knob. The movements will be output as control voltage. The record time amounts to one minute maximal. The track can be played once only (one shot) or in loop. The speed of the play back or the output offset is controllable with the pot. There are an additional CV input for CV recordings and a reset input.

Track data remains permanently stored when a 3V battery is used to buffer the RAM. When the module is switched on, the recorded data is available again. The module can be operated unipolar or bipolar (set by jumper on the back). The module size is 12HP in 1U format (intellijel).

Dimensions
12 HP
41 mm deep

Module is a 1U tile in Intellijel format

Current Draw
20 mA +12V
9 mA -12V
0 mA 5V
