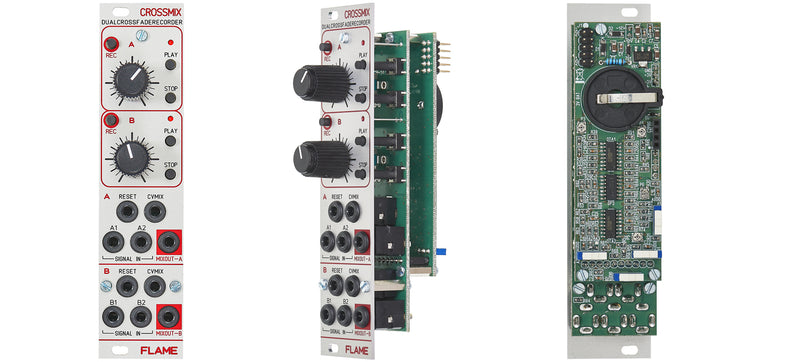

FLAME CROSSMIX DUAL CHANNEL AUTOMATABLE CROSSFADER

FLAME CROSSMIX DUAL CHANNEL AUTOMATABLE CROSSFADER

FLAME CROSSMIX DUAL CHANNEL AUTOMATABLE CROSSFADER

Regular price $219.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

The "CROSSMIX" module includes two independent crossfader with two inputs on one output and is designed for audio or CV sources in the voltage range of + -5v (modular level). In addition, the 4 inputs can be separately switched to + 6db audio via the rear slide switch (for external line level sources).

The two crossmix controls can be recorded. The recording time per channel is over two minutes. The playback speed is adjustable in the playback. The recorded track is played by pressing the Play button once (one shot) or by a longer press in the loop.

Both crossfaders have a separate reset input and a separate CV input (+ -5V) for controlling the mix e.g. by an LFO. The track data remains permanently stored (battery-backed memory).

  • 2 channels with recording time of max 102 sec.
  • 2 CV / audio inputs per channel (-5v, +5v)
  • audio input is switchable to line level (separately for each input)
  • resolution 12-bit, sampling rate ca. 250Hz
  • modes: one shot, loop playback
  • manually changeable playback speed
  • non volatile memory (batteries come with it!)
  • reset input for each channel
Dimensions
6 HP
38 mm deep
Current Draw
40 mA +12V
30 mA -12V
