FLAME MEMOSLIDER

FLAME MEMOSLIDER
FLAME MEMOSLIDER

FLAME MEMOSLIDER

Regular price $269.00
/
  • Free shipping over $99
  • Easy returns
  • Secure payments
  • In Stock

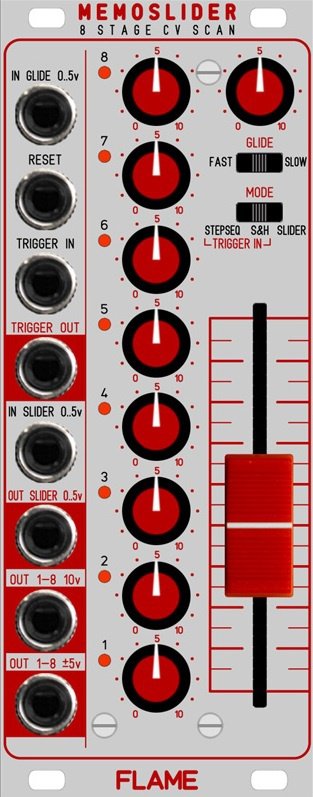

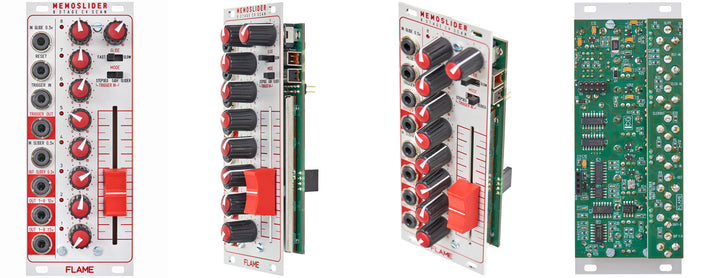

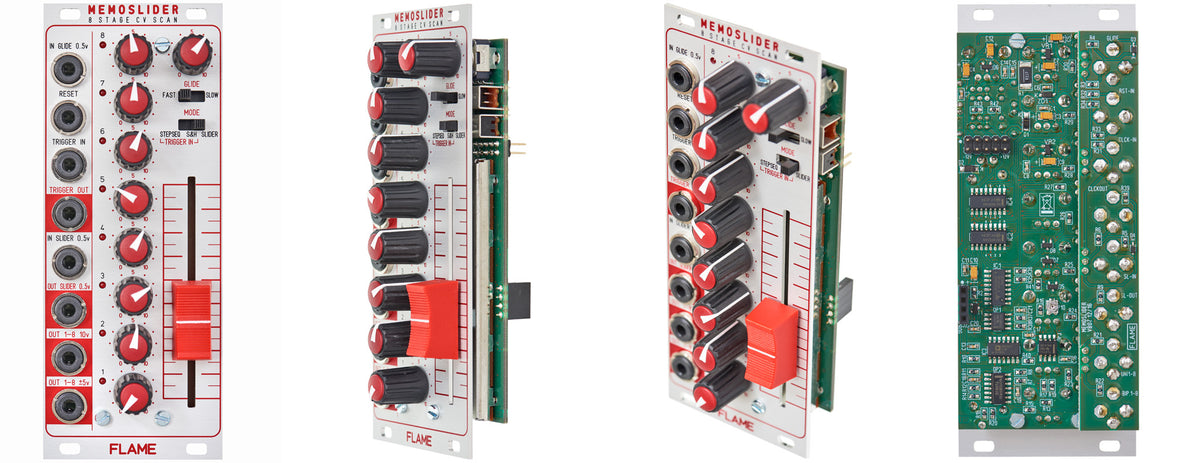

The Flame "MEMOSLIDER” module is a small programmable analogue slider module, designed for small mobile euro racks. Two seperatly different output voltages of the pots 1-8 are available: unipolar 0..+10v and bipolar -5..+5v.

Additional the directly slider voltage input and output (0..+5v) are available. The module include a GLIDE function (manually via pot or via external CV).

It's possible to link several modules like an multi track sequencer or to connect several modules in parallel.

There are three play modes:

SLIDER
for manually selection of one of the eight steps

SAMPLE AND HOLD
for synchronized selection of one of the eight steps

STEPSEQUENCER
like an analogue step sequencer

Dimensions
10 HP
30 mm deep
Current Draw
40 mA +12V
5 mA -12V
